Basic Info.
Sealing Protection
IP65
Connection
Type 1 / Type 2
Operating Temperature
-30~+50 C
Function
APP Control, Screen Display
Output Power
11kw
After-Sales Service
2 Years
Type
Fast EV Charging Station
Certification
CE, ISO, TUV
Warranty
24 Months
Transport Package
Carton
Specification
45.7*33.8*11.5cm
Trademark
Power2move
Origin
China
HS Code
8504409999
Production Capacity
50000PCS/Year
Product Description

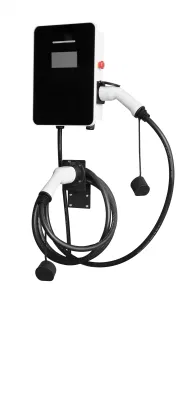

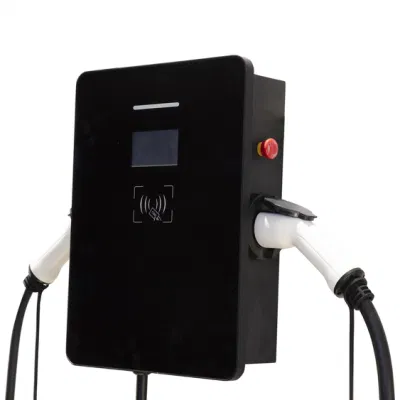

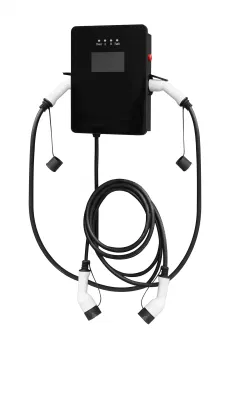

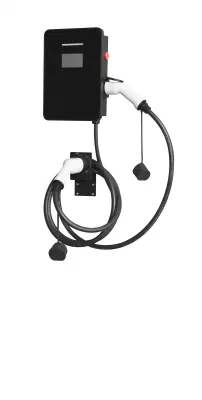

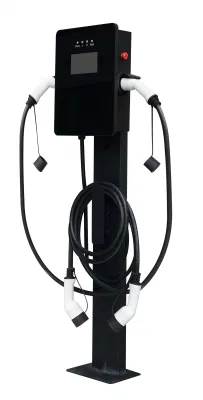

Popular AC Integrated Electric Car Charging Station EV Charging with Type2 Plug
Item No.:PM-AC-P3-56
Specification
Features
* For Home User--Plug and play
* For Commercial User--card swipe, Occp 1.6 code, 4G mode, bluetooth
Sample Room
Workshop
Certificates:
Loading
Item No.:PM-AC-P3-56
Specification
| Input Voltage/Output voltage | 380V |
| Input frequency | 50Hz |
| Max. output power | 11kW (Three Phase) |
| Max. output current | 16A |
| Charging interface type | IEC 62196-2 |
| LCD | 4.3-inch color display |
| RCD | Type A+ 6mA DC |
| Protection degree | IP65 |
| Environment temperature | -30-50ºC |
| Relative humidity | 0-95% non-condensing |
| Maximum altitude | <2000m |
| Certificate | CE & TUV |
| Communication | Ethernet/WIFI/4G/Bluetooth |
| Intelligent power adjustment | Yes |
| RFID | Optional |
| Protocol | OCPP1.6 |
Features
* For Home User--Plug and play
* For Commercial User--card swipe, Occp 1.6 code, 4G mode, bluetooth
Sample Room
Workshop
Certificates:
Loading
