PRODUCTS DETAILS

Basic Info.

Model NO.
KY-AC
Mtbf
100, 000 Hours
Cooling Method
Forced Air Cooling
Protection Level
Level IP55
Working Elevation
<2000m
Working Humidity
5%~95% Non-Condensing Cream
Security Function
"Overvoltage Protection, Undervoltage Protection
Measurement Accuracy
Level 0.5
Transport Package
Can Be Customized According to Your Needs
Specification
292*126*417(MM)
Trademark
KAYAL
Origin
China
Production Capacity
50000

Product Description

Products Description
Simple and Easy EV Electric Vehicle Charging Station Chinese Manufacturer Simple and Easy EV Electric Vehicle Charging Station Chinese Manufacturer Simple and Easy EV Electric Vehicle Charging Station Chinese Manufacturer Simple and Easy EV Electric Vehicle Charging Station Chinese Manufacturer Simple and Easy EV Electric Vehicle Charging Station Chinese Manufacturer Simple and Easy EV Electric Vehicle Charging Station Chinese Manufacturer
product name

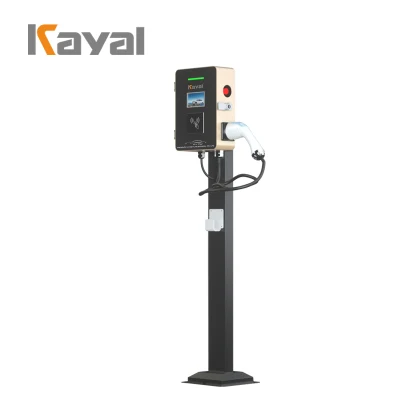

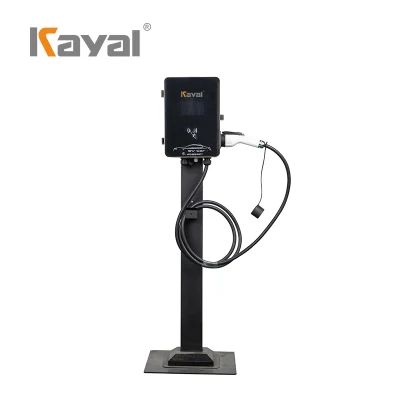

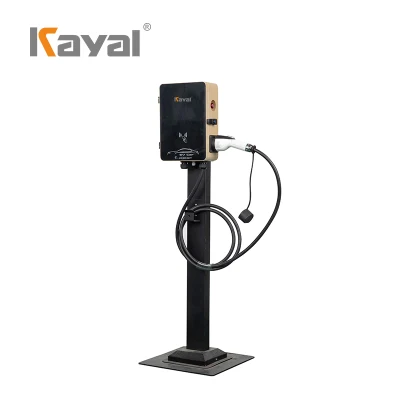

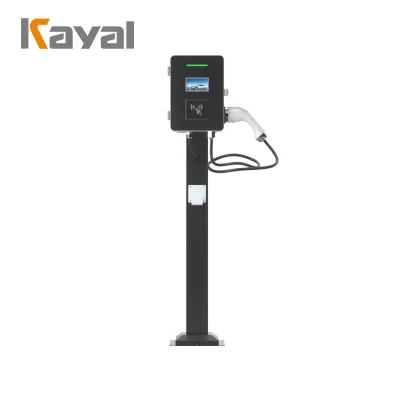

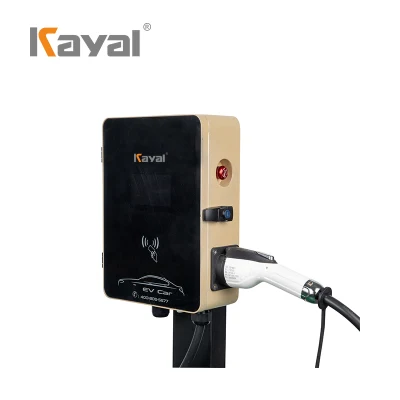

AC EV Charging Station
model
KY-AC7KW
KY-AC14KW
Dimensions (mm)
340*240*110
480*350*120
Human-computer interaction
4.3 inch touch screen
AC power
220Vac±20% ; 50Hz±10% ; L+N+PE
Rated current
32A
Output Power
7KW
14KW
working environment
Altitude: ≤2000m; Temperature: -20ºC~+50ºC;
charging method
Swipe card, scan code
Networking method
2G, 4G, Wifi, applet
Operating model
Offline no billing, offline billing, online billing
Protective function
Overvoltage, undervoltage, overcurrent, short circuit, surge, leakage, etc.
Charging port
GB/T 20234.2-2015
Charging cable length
Standard 3.5 meters (optional)
Protection level
Ip54
Installation method
Wall-mounted or floor-mounted installation, corresponding accessories are required
Simple and Easy EV Electric Vehicle Charging Station Chinese Manufacturer
Hot products
Simple and Easy EV Electric Vehicle Charging Station Chinese Manufacturer
FAQ
What is your terms of payment?
A: Alibaba online fast payment, T/T
Do you test all your chargers before shipping?
A: All major components are tested before assembly and each charger is fully tested before shipped
Can I order some samples? How long?
A: Yes, and usually 7-10 days to production and 7-10 days to express.
How long to fully charge a car?
A: To know how long to charge a car, you need to know the OBC(on board charger) power of the car, the car battery capacity, the charger power. The hours to fully charge a car =battery kw.h/obc or charger power the lower one. For e.g, the battery is 40kw.h, obc is 7kw, charger is 22kw, the 40/7=5.7hours. If the obc is 22kw, then 40/22=1.8hours.
Are you Trading Company or manufacturer?
A: We are professional EV charger manufacturer.
