Basic Info.
Model NO.
Guardian 1phase 32A 7kw EV Charger Type2
Warranty
24 Months
Transport Package
Standard Carton Box
Specification
310*210*90mm
Trademark
Zhida
Origin
China
HS Code
8504409990
Production Capacity
10000 Pieces/Year
Product Description

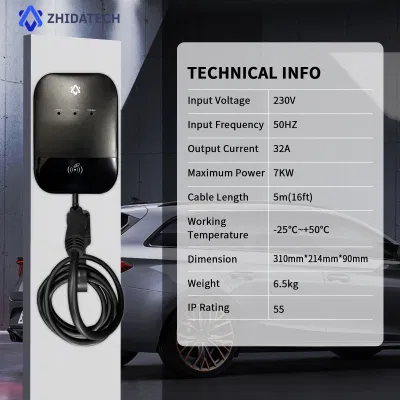

| General Specification | |
| Charging type | Level 2 Mode 3 |
| AC input/output power and current | 7kW / 32A |
| Input / output voltage | 165 - 265V, Single phase |
| Operating frequency | 47 - 63Hz |
| Connector type | Type 2, AC 277V, 40A |
| Protection | Undervoltage/ Overvoltage, Overcurrent, Overheat, Short circuit, Leakage, Lightning protection |
| Dimensions | 310*214*90 mm / 12.2*8.4*3.5 in |
| Net weight | 6.5 kg / 14.3 lbs |
| Operating Environment | |

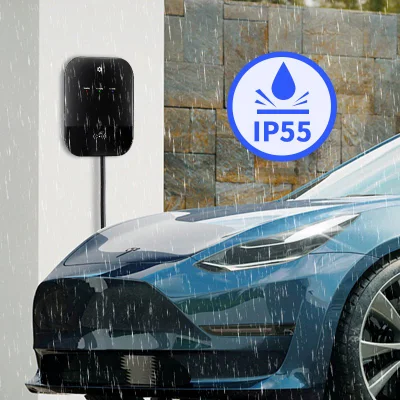

| Protection rating | IP 55 |
| Operating temperature | - 20°C - + 55°C |
| Storage temperature | - 40°C - + 85°C |
| Relative humidity | 5 - 95%, without condensation |
| Maximum altitude | 2000m |
| RCD current | 30mA |
| Connection & Communication | |
| RFID | Optional |
| WIFI OCPP 1.6J | Optional |
| 4G OCPP 1.6J | Optional |
| Certificate | |
| CE | UKCA |
| RCM | ROHS (in process) |
| WEEE (in process) | REACH (in process) |
| TUV (in process) | ANNATEL (in process) |
| ETSI EN 303 645 (in process) | BQB |
| ABOUT US |
| Shanghai Zhida Technology Development Co., Ltd. was established on November 25, 2010. The company focuses on new energy, new materials, environmental protection technology, and energy conservation technology. In December 2014, cooperated with the listed company Zhongding Group, Zhida established Zhida Zhongding Automotive Charging Equipment Co., Ltd, an EV charging station production base in Xuancheng, Anhui, which complies with IATF 16949, ISO 9001, ISO 14001 standards. In 2021, 1.45 million home charging stations have been installed in China, among which 350,000 units were supplied by Zhida Tech, with a market share of 24%, ranking 1st in the industry. With a new production base established in Anhui, the company has reached a total capacity of 2,000,000 units per year. Early from 2015, Zhida began to enter into European and American markets. Today, Zhida has provided EV charging products, services and operations for over 70 auto brands, including BYD, GWM, Ford, Lincoln, Volvocars, Volkswagen and other renowned EV brands at home and abroad in more than 50 cities and 500 communities. |
| FAQ |
| 1.What' s your MOQ? With two main factories built in Anhui, China, Zhida Tech has a production capacity of up to 2,000,000 chargers per year. Feel free to contact us in terms of your requirements. 2.How to get a sample? Please provide us your address and contact info to receive a sample. After receiving your payment, we will send out the product as soon as possible. 3. Do you have OEM or ODM service? For OEM and ODM requirement, we have rich experience in providing automotive companies with OEM services. Feel free to contact us in terms of your customized requirement. 4. Do you have additional after-sales service? All our products have a basic warranty period of 2 years. Feel free to contact us in terms of specific requirements in your country. 5. Do you test all your products before delivery? A: Yes, our products are 100% tested before delivery. |
