Basic Info.
Model NO.
M3W332EN
Charge Method
Quick Charge
APP
Set Current, Booking Charging, Remote Upgrade
OEM
Logo, User Manual, Label, RFID Card, Language
External Communication
LAN(Rj-45) &WiFi; Ocpp/Modbus
Mounting Pole Mechanical(Optional)
1117*240*112mm, Less 5kg, Metal
Power Wiring
3wire, L1, N, PE/5wire, L2, L3, PE
Voltage
220V, 230V, 240V, 380V, 400V
Rated Output Power
3.5kw, 7kw, 11kw, 22kw
Power Input
Level 2, 1 Phase, 3 Phase
Color
Black or Customized
Material
Tempered Glass, Plastic
Ocpp Protocol(Optional)
Ocpp 1.6j
Connector Type
IEC 62196-2
After-Sales Service
Remotely After Sales Service
Certification
Reach, CE, RoHS
Warranty
24 Months
Transport Package
by Carton, 1 Piece/Carton
Specification
410*260*164mm, 1phase10kg, 3phase 12kg
Trademark
WEEYU
Origin
Deyang, Sichuan, Province, China
HS Code
8504409999
Production Capacity
10000 Pieces/Month
Packaging & Delivery
Package Size
51.00cm * 35.00cm * 29.00cm
Package Gross Weight
12.000kg
Product Description
INJET High Quality AC 1 phase / 3 phase 16A / 32A 7kw 11kw 22kw Electric Car Home Charger EV Charging Wallbox
Product Description
Smart Swift Series EV Charger For Home Charging

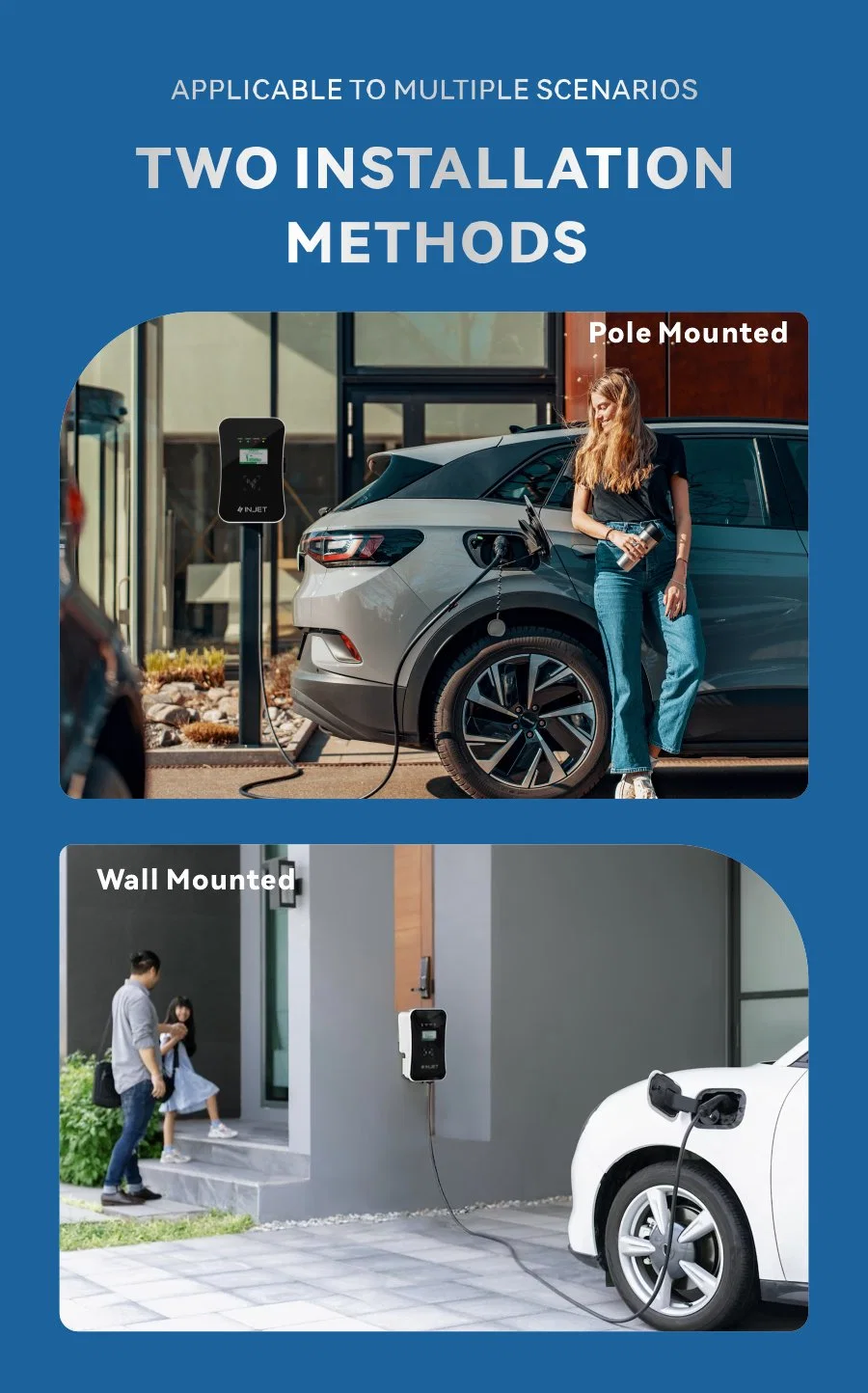

Swift Series charger is both suitable for residential and commercial use, the max output can reach 22kw to allow fast charge. its compact design can save more place. This AC EV Charging Station also can be mounted on the the floor-mounted attachment, applicable for outdoor installation like parking lot of office building, hospital, supermarket, Hotel and etc. for commercial EV charging.
Smart Swift Charger for Commercial Charging
Adapts to all electric vehicles, power supplies and mains.
It's a powerful home charging solution within max current output reach 32 A, which is most ideally and most vehicles can use without issue.It is original enough to fit in any home place, meanwhile easy to install and use.
With the smart APP, you can easily schedule your home charging and adjust the current and power to your need.CE,RoHs,REACH approved, strictly comply with the health and safety standards.
CE,RoHs,REACH approved, strictly comply with the health and safety standards.But also a commercial EV charging solution.
With OCPP 1.6J & 4G optional, Injet-Original is suitable for all parking lots in work places, super markets, apartments and
communities.
Product Parameters
| General Information | ||||
| Standard | SAE Standard (US Version) | IEC Standard (EU Version/GBT Version) | ||
| Charging Connector Type | SAE J1772 (Type 1) plug | IEC 62196-2 (Type 2/Mennekes) Plug/GB/T20234.2 Type 2 | ||
| Certificates | / | CE, ROHS, REACH,LVD, RED | ||
| Rated AC Voltage Power Input | 208-240V | 220V ±10% | 380V ±10% | 380V ±10% |
| Phase Number | / | 1 Phase | 3 Phase | 3 Phase |
| Rated AC Power Output | 3.5kw/7kw/10kw | 3.5kw/16amp 7kw/32amp | 11kw/16amp | 22kw/32amp |
| Current Adjustable | 6a ~40a | 6a ~16a 6a-32a | 6a ~16a | 6a ~32a |
| Rated Frequency | Rated Frequency | |||
| Power Plug | NEMA14-50 Plug | / | ||
| EVSE Charging Modes | Mode 3 Charging | |||
| EVSE Connecting Type | Case C, Case B available (Tethered Version with Cables or Untethered Version without Cables) | |||
| User Interface & Control | ||||
| Charging Control | 1. Plug in and out for start and stop charging 2. Plug in, swipe RFID card to start and stop charging, then plug out 3. App control | |||
| Charging Data Monitoring | Power consumption, current, voltage, miles, cost and schedule charging times etc. | |||
| LED Indicators | 4 LED indicators-Power/Connect/Charging/Fault | |||
| Internet Connection | 1.Ethernet/LAN (RJ-45) 2. 2.4 GHz Wifi 3. LTE Category 4(4G optional)/SIM card module | |||
| External Communication | 1. OCPP 1.6J (optional) 2. RS 485 (optional) | |||
| Operational Ratings | ||||
| IP Ratings | NEMA TYPE 4 IP65 IK08 | CE certified IP65, IK10 suitable for indoor and outdoor application | ||
| Storage Temperature | -40 to 75ºC (-40 to 167ºF) ambient | |||
| Operating Temperature | -30 to 55ºC (-22 to 131ºF) ambient | |||
| Operating Humidity | Up to 95% non-condensing | |||
| Altitude | ≤2000m | |||
| Protection | Over Voltage Protection Over Load Protection Earth Leakage Protection(CCID 20) Over-temp Protection Under Voltage Protection Short Circuit Protection Ground Protection Surge Protection | |||
| Wallbox Mechanical | ||||
| Dimension (H x W x D, mm) | 410*260*140 | 410*260*140 | ||
| Weight | 7-8Kg | 7~11KG | ||
| Charging Cable Length | 5m,7.5m, or Customize Length | |||
| Enclosure Material | Metal | |||
| Power Specification | ||||
| AC Power Input Rating | SAE Standard | IEC Standard | ||
| AC Level 2 | 1-Phase | 3-Phase | ||
| 240V | 220V ± 15% | 380V ± 15% | ||
| AC Power Output Rating | 3.5kW/16A | 3.5kW/16A | 11kW/16A | |
| 7kW/32A | 7kW/32A | 22kW/32A | ||
| 10kW/40A | N/A | 43kW/63A | ||
| Rated Frequency | 50/60Hz | 50/60Hz | 50/60Hz | |
| Connector Type | SAE J1772 (Type 1) | IEC 62196-2 (Type 2) | ||
| User Interface & Control | ||||
| Charging Control | Plug and Play, RFID Card or APP | |||
| Display Screen | 4.3-inch LCD Screen | |||
| Voice Prompt (Optional) | Voice guide of the charging process in English | |||
| Indicators | 4 LED indicators-Power/Connect/Charging/Fault | |||
| External Communication | LAN (RJ-45) and Wi-Fi | |||
| OCPP Protocol (Optional) | 1.6 or 2.0.1 | |||
| Environmental | ||||
| Storage Temperature | -40 to 75ºC (-40 to 167ºF) ambient | |||
| Operating Temperature | -30 to 55ºC (-22 to 131ºF) ambient | |||
| Operating Humidity | Up to 95% non-condensing | |||
| Altitude | ≤2000m | |||
| Protection | ||||
| Protection Ratings | IP 65 | RCD | Type A / Type B | |
| Over Voltage Protection | Yes | Under Voltage Protection | Yes | |
| Over Load Protection | Yes | Short Circuit Protection | Yes | |
| Earth Leakage Protection | Yes | Ground Protection | Yes | |
| Over-temp Protection | Yes | Surge Protection | Yes | |
| Wallbox Mechanical | ||||
| Dimension (H X W X D, mm) | 410 X 260 X 164 | |||
| Weight | 1-phase<10kg; 3-phase<12kg | |||
| Charging Cable Length | 5m or Customize Length | |||
| Enclosure Material | Front-Panel: Tempered Glass; Back-cover: Metal Plate | |||
| Mounting Pole Mechanical (Optional) | ||||
| Dimension (H X W X D, mm) | 1400 X 200 X 100 | |||
| Weight | <8kg | |||
| Enclosure Material | Metal | |||
PRODUCT INTRODUCTION
* Each EV charging station is with emergency stop botton
* Each wallbox EV charger comes with its own MCB/OCCP
* Independently designed, different from other existing models in the market
* Easy installation, maintaining and stable functioning
* Solid durable metal box and full size LCD screen
* Customize designs, logos, colors available even for small quantity and small business
* Independently designed, different from other existing models in the market
* Easy installation, maintaining and stable functioning
* Solid durable metal box and full size LCD screen
* Customize designs, logos, colors available even for small quantity and small business
