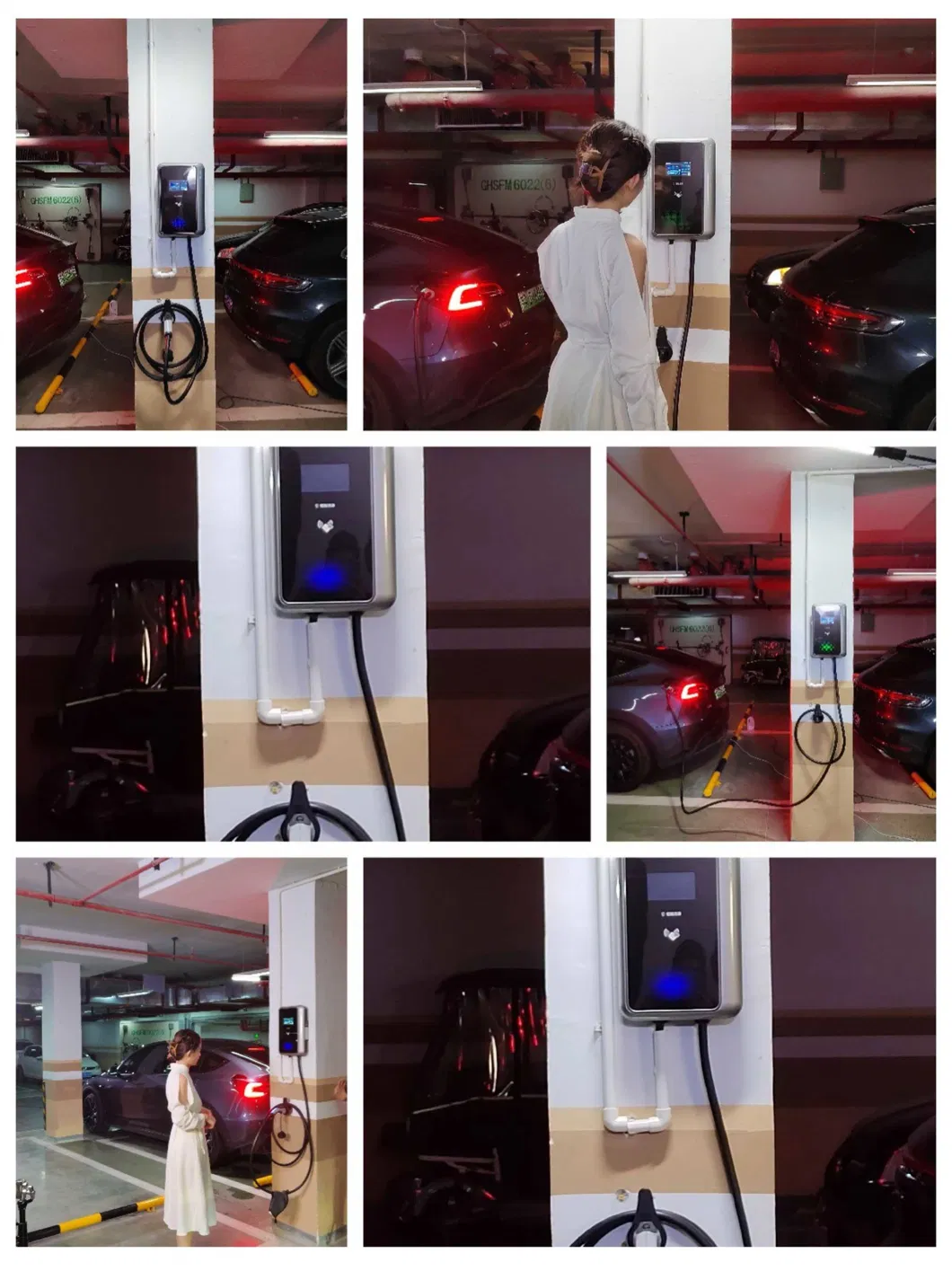

- Real shots
- Company Profile
- FAQ
Basic Info.
Model NO.
VSPEV-1P11KW01US
Charge Method
Quick Charge
AC Power
380V 3p
Max Rated Power
48A
Standby Power
<1.5W
Frequency Rating
50Hz
Material
PC V0
Cable Material
TPU
Cable Length
5m
Operating Temperature
-30...+55
Protection Degree
IP66
Mechanical Life
No-Load Plug in/out
AC Power Input Rating
1phase / 3 Phase
Power Efficiency
94%
Type
Fast EV Charging Station
Certification
CE, ISO, TUV, FCC, RoHS
Warranty
36 Months
Transport Package
Carton
Specification
385*248*80mm
Trademark
VSCHNEL
Origin
China
HS Code
8504409999
Production Capacity
2000PC/Month
Packaging & Delivery
Package Size
40.00cm * 40.00cm * 12.00cm
Package Gross Weight
8.500kg
Product Description
·Comply with IEC standards and requirements
·Product shape is ergonomic design,easy to plug and pull·The protective cover is made of TPU material to improve the service life and wear resisting
·Dust proof and water proof is IP57 ( Operating )
·Support for color customization
Elevate your charging experience with our cutting-edge product features. Our devices boast a generously sized, high-definition LED display that effortlessly showcases vital information such as the current charging status, charging current, and charging power, all in crystal-clear clarity. To add an extra touch of sophistication and style, we've incorporated a captivating breathing light feature. When your device is charging, this mesmerizing light gently pulsates, creating a visually stunning and attention-grabbing effect that's sure to impress.
Unlock exceptional value with our charging station offering more power and output options than any competitor. Tailor your charging speed with adjustable amperage: 48A, 40A, 32A, 24A, or 16A. Achieve a charge rate of up to 40 miles per hour at 48A, 30 miles per hour at 40A, 25 miles per hour at 32A, 18 miles per hour at 24A, and 12 miles per hour at 16A. Get more for your money with versatile charging configurations.
Customized Current: Our product offers direct current adjustment from 8 to 48A, giving you the flexibility to select the optimal charging rate for your vehicle.
Time Management at Your Fingertips: Take charge of your charging schedule with our key feature. You can precisely determine the duration of your charge within a 24-hour window.
Cost-Efficient Delayed Charging: Seamlessly save on charging expenses by utilizing the delayed charging function, allowing you to charge your vehicle at specific, cost-effective times.
Intelligent Error Correction: Featuring a smart chip, our product can autonomously rectify certain errors, eliminating the need for manual intervention.
Battery Health Monitoring: Our charger assists in monitoring your vehicle's battery health, promptly notifying you of any irregularities or abnormalities
Voltage-Adaptive Charging: With automatic voltage matching, our charger prevents overloading by intelligently adjusting the charging power to suit your home's voltage, safe and efficient charging.
Our UL EV Charging Station is your gateway to federal rebates. With IP66 and fire resistance, it safeguards your investment. Plus, it's packed with smart protections like Over Current, Over Voltage, and Ground Fault, ensuring safety and reliability. Self-monitoring and recovery features, along with built-in GFCI to peace of mind.
Power specification | |||
Model | VSPEV02-7KW/11KW/22KW | ||
AC Power Input Rating | 1P 220V/3P 380V/1 P110/220V | ||
AC Power Output Rating | 16A/32A/48A | ||
Frequency Rating | 50/60HZ | ||
User Interface&Control | |||
Emergency Stop Button | YES | Plug-And-Charging | YES |
RFID Card Charging | YES | App Charging | YES |
Ethernet Interface | YES | Wifi Function | YES |
4.3-Inch LCD Screen | OPTIONAL | ||
Protection | |||
Over Voltage Protection | YES | Under Voltage Protection | YES |
Over Load Protection | YES | Short Circuit Protection | YES |
Earth Leakage Protection | YES | Ground Protection | TES |
Over-temp Protection | YES | Surge Protection | YES |
RCD | TYPE A | ||
Environmental | |||
Storage Temperature | -40~75ºC | Operating Temperature | -30~55ºC |
Operating Humidity | 5%-95%,non-condensing | Altitude | ≤2000M |
Cooling Method | Natural Cooling | ||
EV Charging Wall Box Mechanical | |||
IP Grade | IP55 | Dimension(H*W*D,mm) | 385*248*80 |
Weight | 4.8kg/6.3kg | Charging cable length | 5m or customize |
Enclosure Material | PC VO Flame Retardant |
1.Are you a manufacturer or a trading company?
Operators with independent import and export rightsproviding convenience for direct overseas business.
2.What is the transportation method?
For urgent orders and lighter goods, you can choose the following express delivery options:UPS,FedExDHL.For heavier goodsair or sea freight can be chosen.
3.How to make payment?
Wire transfer to ensure trade.
4.How much does it cost to ship to my country?
This depends on the season, and the fees vary depending on the season.
5.Can Iprint our logo/barcode/unique QR code/serial number on the product?
Of course this is our basic service.
6.Can lorder some samples for testing?
Usually, samples are free of charge. But for some special samples there may be some fees required.
7.Can you customize special shapes for my product?
Yes,OEM and ODM are our unique services.
