Basic Info.
Model NO.
TS-EVC07-003
Housing Material
Pcv0
Installation Method
Wall-Mount/Floor-Stand
Protection Level
IP65
Dimension
230*230*100mm
Weigth
4.4kg
Type
Fast EV Charging Station
Certification
CE
Warranty
24 Months
Transport Package
Carton
Origin
China
HS Code
8504409999
Production Capacity
20000
Product Description

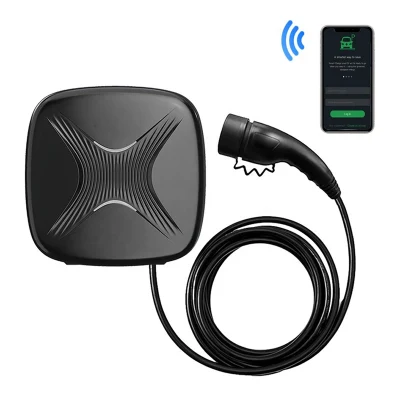

| Product Name | Type 2 32A 7KW Wall-mounted OCPP EV Charging Station with APP |
| Electrical Properties | |
| Voltage | 230VAC ±10% |
| Output Current | 32A |
| Frequency | 50/60Hz |
| Output Power | 7kw |
| Residual current protection | TYPE A 30mA |
| Structure Design | |
| Charging Outlet | 5M charging cable |
| Housing Material | PCV0 for outdoor |
| Installation Method | Wall-mount/Floor-stand |
| Security Protection | |
| Safety Standard | EN 61851-1 |
| Warranty | 2 years |
| Protection Level | IP65 |
| Temperature/Humidity | -30~50°C/5%~95% without condensation |
| Work Altitude | <2000M |
| Salt spray test | Meet IEC 61851-1:2017 |
| Atmospheric pressure | 80kPa~101kPa |
| Temperature and humidity cycle | Meet IEC 61851-1:2017 |
| Communication | |
| Network Gateway | Blue tooth default |
| Mobile APP(Ios and Android supported) | Scheduled charging, Start charging, Stop charging, Current adjustment (memorable), Charging status shown on mobile APP |
| Packing Details | |

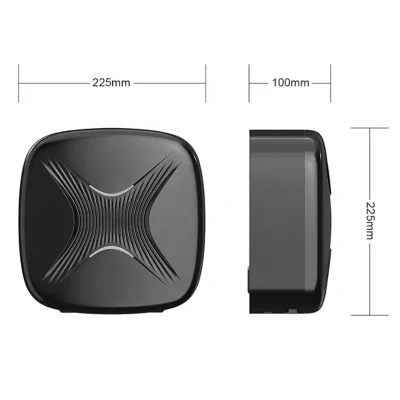

| Product Size | 230*230*100mm |
| Product Weight | 4.4kg |
| Optional Parts | |
| Residual current protection | modular TYPE B is optional |
| Network Gateway | WIFI is optional |
