Basic Info.
Model NO.
DC Fast EV Charger
Charge Method
Quick Charge
Application
Electric Car Charging
EV Plug
Chademo CCS AC
Battery Specification
Lithium Battery
Communciation
Ocpp
Billing System
RFID
Advertisement
Option
Model
Level 3 DC Fast Charger Station
Name
Mode 4 Ultra DC Rapid EV Charger
Installation Ways
Stationary
LCD Screen
4.3inch LCD Screen
Cooling Unit
Fans Cooling
IP Grade
IP54
After-Sales Service
Available
Certification
CE
Warranty
12 Months
Transport Package
Wooden
Specification
1350*800*950mm, 100KG
Trademark
NASN
Origin
China
HS Code
8504409992
Production Capacity
1000PCS/Month
Packaging & Delivery
Package Size
135.00cm * 80.00cm * 95.00cm
Package Gross Weight
100.000kg
Product Description
ev charger with integrated lithium battery

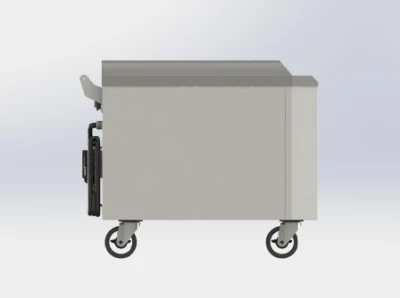

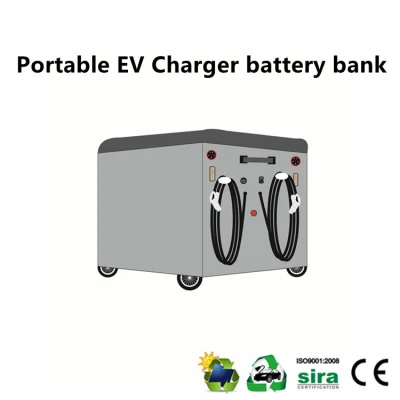

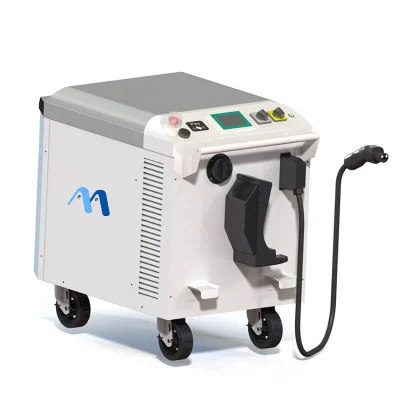

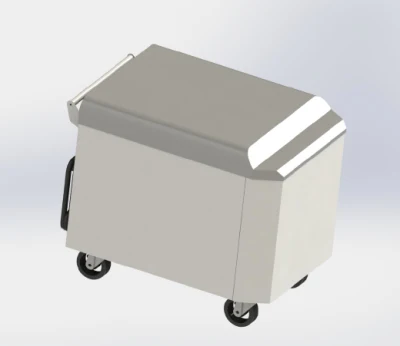

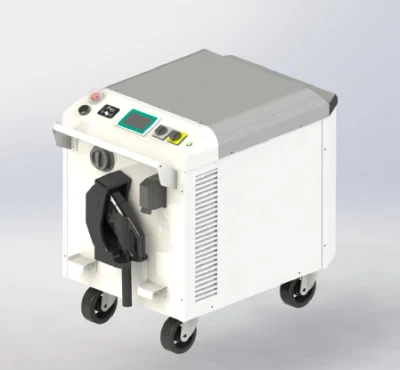

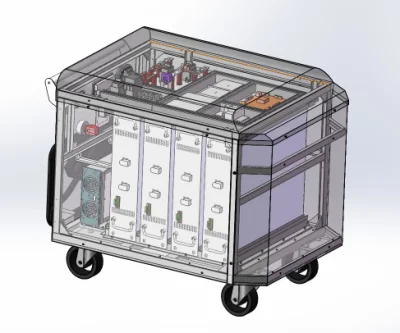

This Container battery Energy Storage System (CBESS) with battery pack built-in, can charge ev at any time and any place. Mobile ev charger system, can be installed on ev self-contained VAN, or a towed trailer to provide roadside or remote electric vehicle rescue when the battery runs out, and on-demanding charging to door service. This emergency mobile ev charging system on the vehicle breaks space limitations and allows rapid deployment without infrastructure.
Features
√ DC fast charging speed
√ Multi-standard with chademo, CCS, Tesla and AC
√ Battery built-in, no need any grid as power source
√ small for home ev fleet use, and container for commercial public are vailable.
√ Good solution for roadside emergency service
√ OCPP configured
Datasheet
More details
Other Popular
PORTABLE EV CHARGER
Factory Details
Established in 2015, GUANGZHOU NASN POWER CO.,LTD is a professional EV charger, DC power supply and battery storage solution provider and enterprise in China, a wholly owned subsidy of NASN ELECTRONICS (HONGKONG) CO., LIMITED.
GUANGZHOU NASN POWER CO.,LTD is dedicated to producing and manufacturing AC EV charger, DC EV charger, DC power supply and battery storage products. As a professional manufacturer, NASN POWER focuses on providing customers with professional charging equipment that is safer, more efficient and more stable. NASN's products are oriented to the household and commercial markets in the EV and power supply charging field, including all kinds of EV Connector and EV Charger Sockets, EV Charging Cables, emergency rescue EV charger system, V2H and V2V charger, Solar EV charger system,Media screen EV charger, Portable DC fast EV Charger, Public multi-standards DC fast charger, e-scooter and e-motorcycle charger, Portable POWER STATION,portable battery speaker, and DC power supply.
With rich experience and research institutions, advanced equipment and professional technical teams, GUANGZHOU NASN POWER CO.,LTD can design, produce, develop and provide high quality products for enterprises and clients. OEM and ODM services are available.
By taking advantages of abundant industrial resources and extrusive influential,GUANGZHOU NASN POWER CO.,LTD carries out consultations services related to products, technologies, market and projects.
Professions cast the brand, service creating value, GUANGZHOU NASN POWER CO.,LTD sincerely to build long terms relationship with clients, Win-Win in the world!
FAQ
Q1: What kind of EV Charger do you have?AC and DC charger with connectors Type2, CCS1/CCS2, CHAdeMO, GB/T, etc.
Q2: Do you provide customized product?
We provide OEM and ODM services for clients.
Q3: What is the delivery time of EV charger?
About 4-6 weeks.
Q4: What about your warranty of EV Charger?
Generally 2 years. Our warranty period depends on customer's requirements and we always put customer's need as priority.
Q5:How do you package it ?
A:We pack in cartons.
Q6:what's the MOQ?
A:For LOGO, color or other special requirements, a minimum of 20 is required. If you do not have these requirements you can buy
directly, we will ship within 3-10 days.
Q7:Can you produce according to the samples?
A:Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q8:Do you test all your goods before delivery?
A:Yes, we have 100% test before delivery.
Q9:What is your terms of delivery?
A:EXW, FOB, CFR, CIF, DDU.
Q10:What is your terms of payment?
A:We accept all methods of payment: paypal, T/T, credit card, Alibaba assurance, West Union... Please contact us for more details.
This Container battery Energy Storage System (CBESS) with battery pack built-in, can charge ev at any time and any place. Mobile ev charger system, can be installed on ev self-contained VAN, or a towed trailer to provide roadside or remote electric vehicle rescue when the battery runs out, and on-demanding charging to door service. This emergency mobile ev charging system on the vehicle breaks space limitations and allows rapid deployment without infrastructure.
Features
√ DC fast charging speed
√ Multi-standard with chademo, CCS, Tesla and AC
√ Battery built-in, no need any grid as power source
√ small for home ev fleet use, and container for commercial public are vailable.
√ Good solution for roadside emergency service
√ OCPP configured
Datasheet
| Charge EV | Output Voltage | 200-500Vdc & 200-750Vdc for option | |
| Output power | Min 60KW | ||
| Charger communication protocol | IEC 61851-24; DIN70121;ISO15118 | ||
| Charger plug number | 1 to 3 | ||
| Charger plug standard | CHAdeMO CCS, GB/T, AC for option | ||
| support charge 2 evs at same time | YES | ||
| Recharge Battery | AC Gird | 3phase 400Vac±15% (3P+N+PE) | |
| DC CCS public charger | CCS input | ||
| DC CHAdeMo public charger | CHAdeMO input | ||
| AC public charger | Type 1 or Type 2 input for option | ||
| Battery system | Battery Capacity (KWH) | 30KWH | |
| Cell Chemistry | Lithium iron phosphate LiFeP04 | ||
| DOD% (Depth of discharge) | 90% | ||
| Working Temperate | Charge | - 20 ºC to 55 ºC | |
| Discharge | - 20 ºC to 65 ºC | ||
| Communication Protocol | RS485/CAN/LAN | ||
| Cycle Life (0.3C) | > 6000 TIMES, 100% DOD @25ºC | ||
| Structure Design | Charge&Discharge at same time | YES | |
| Installation method | Floor Mounted or Movable | ||
| Cable Length | 5m length for each | ||
| LED indicator | 3 LED indicator light or Light Strip | ||
| LCD screen | EV Charger status screen | ||
| 5inch battery status screen | |||
| Emergency Button | YES | ||
| Communication | EN-GATE v.s. Charger | CAN 2.0 (CHAdeMO, GB/T) | |
| PLC (CCS) | |||
| EN-GATE v.s. Backend | Ethernet/WIFI/3G/4G for option | ||
| Charger Communication protocol | OCPP1.6 (JSON) | ||
