Basic Info.
Model NO.
GL-EV-11KEU-02
Trademark
OEM
Origin
China
HS Code
8517629900
Production Capacity
500000PCS/Year
Product Description
Home Charging Piles Cell Charging Piles Car Charging Piles New Energy Charging Piles

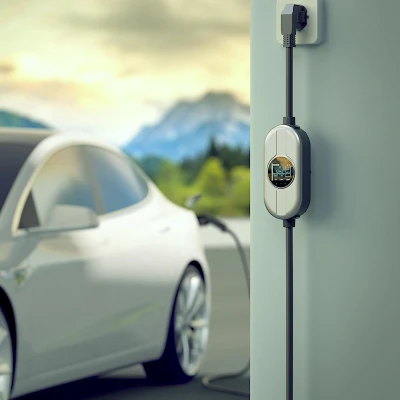

There are two types of AC charging posts: wall-mounted charging posts and portable charging posts, which are used for AC charging of small electric vehicles with on-board chargers.
EV chargers allow you to charge your electric vehicle in just a few hours while you sleep, work, eat or spend time with your family.
Specification

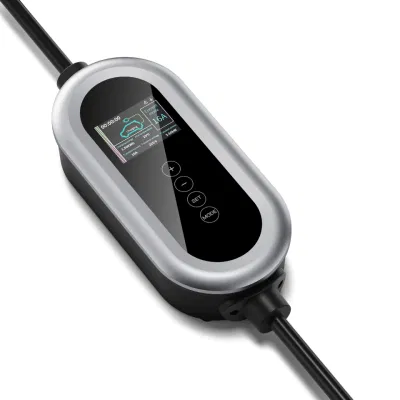

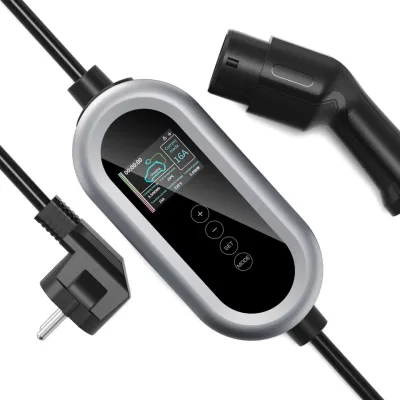

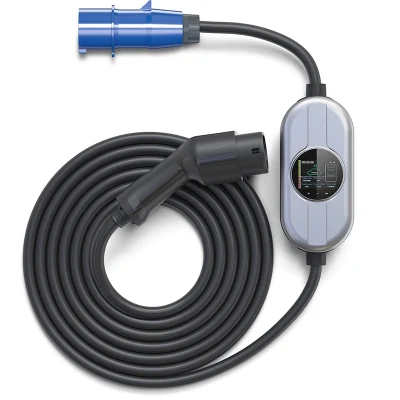

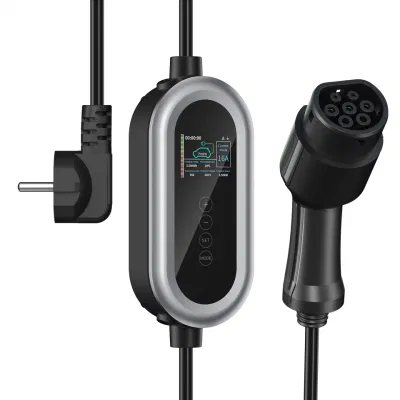

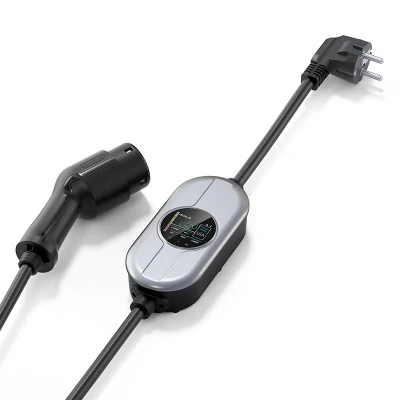

| Product name | New Design EV Charger 7.4m Cable Type 1 EV Charging Station 1 Phase 3.5kw 8A 16A Fast Electric Vehicle Charger With LCD Screen |
| Model number | GEV-11KEU-02 |
| Max Output power | 3.84KW |
| Input/Output power | 110-240V 50/60Hz |
| Input/Output current | 8, 10, 12, 14, 16A adjustable |
| Input/Output Voltage | AC 110-240V/ Single Phase |
| Frequency | 50/60Hz |
| Iput plug | NEMA 5-20P/ NEMA 6-20P |
| Charging plug | SAE J1772(Type 1) |
| Output cable | 7.4M |
| Withstand Voltage | 2000V |
| Work alttitude | <2000M |
| Stand by | <3W |
| Protection | over voltage protection, over load protection,over-temp protection, under voltage protection, earth leakage protection, lighting protection, short circuit protection |
| IP level | IP65 |
| Enclosure | Plastic Plastic PC5V |
| Operating temperature | -30ºC to +55ºC |
| Touch button | Yes |
| LCD screen | Yes |
| Timing/ Appoinment | Yes |
| Size | 37*37*13.5CM |
| Certification | CE, RoHS, Energy Star |
