Basic Info.
Model NO.
EVD-20W-C
Commercial EV Charger
Fast Charging
Output Voltage
150-1000V DC
Input Voltage
260-480V AC
Feature
Over-Voltage Protection
After-Sales Service
Free Accessories
Type
Fast EV Charging Station
Certification
CE, CB
Warranty
12 Months
Transport Package
Standard Export Carton Packing
Specification
650/270/759
Origin
China
Production Capacity
100000/Month

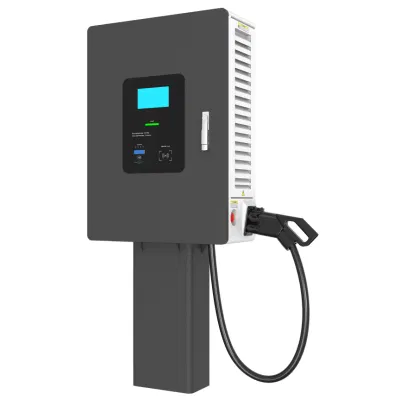

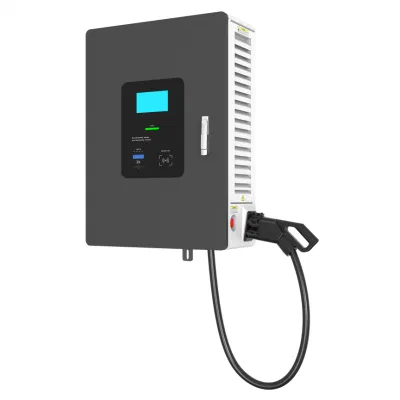

Product Description
Efficient charging
One charger with 1 charging points, internal automatic load balance The power can be expanded from 20kW
One charger with 1 charging points, internal automatic load balance The power can be expanded from 20kW
IP54 Weatherproof Rated
It can withstand the harshest of weather conditions for years to come
It can withstand the harshest of weather conditions for years to come
Protection
Over voltage protection
Under voltage protection
Over load protection
Short circuit protection
O-PEN Protection
Over voltage protection
Under voltage protection
Over load protection
Short circuit protection
O-PEN Protection
Intelligent control
Supports the OCPP1.6J communication protocol Remote maintenance monitoring APP intelligent operation control
Supports the OCPP1.6J communication protocol Remote maintenance monitoring APP intelligent operation control
Cable Length
5m (Customized acceptable) TPU Cable Long service life Environmental-friendly
5m (Customized acceptable) TPU Cable Long service life Environmental-friendly
Smart app gives you full control of your charger. From scheduling your charging session for when your electricity is cheapest, adjusting the power rating, monitoring your energy usage and much more.
| Model | EVD-20W-C(single gun) |
| Input voltage | 260-480V AC |
| Input frequency | 50/60Hz |
| Input Amps/per phase | 30A |
| Number of charging points: | CCS2×1 |
| Output voltage | 150-1000V DC |
| Max. output power | 20kw |
| Communications protocol | OCPP 1.6 JSON |
| Protection degree | IP54 |
| Dimension(W×D×H) | 650×270×759(mm) |
| Weight | 65kg |
| Mounting | Wall Mounted |
| CE | DIN EN 61851-1 DIN EN 61851-23 DIN IEC/TS 61439-7 |
| Environment temperature | -20~55ºC |
| cooling | forced air cooling |
| Relative humidity | 5%-95% non-condensing |
| Altitude | 2,000 m |
| Housing material | Stainless steel spraying |
| Storage temperature | -40~70ºC |
| Cable Length | 5m (Customized acceptable) |
