Basic Info.
Connection
Type2
Operating Temperature
-20~+50 C
Function
APP Control, Screen Display
Output Power
14kw
After-Sales Service
2 Years
Certification
CE, ISO, TUV
Warranty
24 Months
Transport Package
Wooden Packing
Specification
720*300*1250
Trademark
neutral
Origin
China
HS Code
8504409999
Production Capacity
500000PCS/Year
Product Description

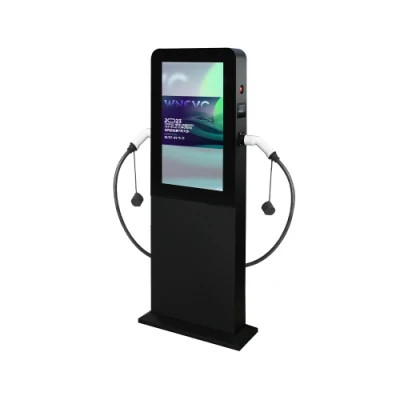

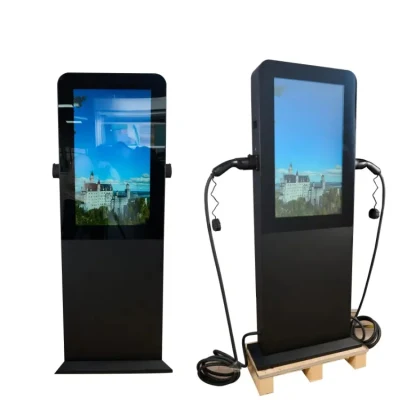

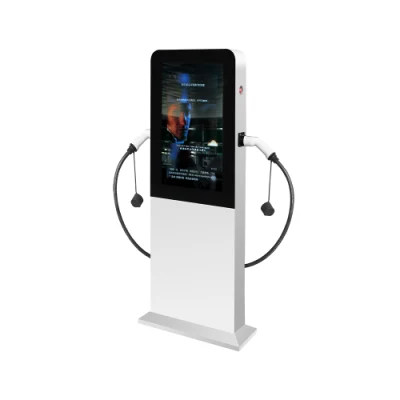

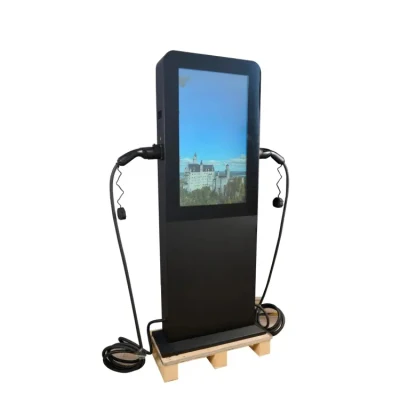

Manufacturer Wholesale Ocpp EV Car Charging Pile with APP for Electric Vehicle
Item No.:PM-AC-P1-89
Specification
Features
* For Home User--Plug and play
* For Commercial User--card swipe, Occp 1.6 code, 4G mode, bluetooth, APP control
Sample Room
Workshop
Certificates:
Loading
Item No.:PM-AC-P1-89
Specification | Input Voltage/Output voltage | 230V |
| Input frequency | 50Hz |
| Max. output power | 7kW*2 (Single Phase) |
| Max. output current | 32A*2 |
| Charging interface type | IEC 62196-2 |
| LCD | 32inch color display |
| RCD | Type A+ 6mA DC |
| Protection degree | IP65 |
| Environment temperature | -20~+50ºC |
| Relative humidity | 0-95% non-condensing |
| Maximum altitude | <2000m |
| Certificate | CE & TUV |
| Communication | Ethernet/WIFI/4G/Bluetooth |
| Intelligent power adjustment | Yes |
| RFID | Optional |
| Protocol | OCPP1.6 |
Features
* For Home User--Plug and play
* For Commercial User--card swipe, Occp 1.6 code, 4G mode, bluetooth, APP control
