Basic Info.
Model NO.
MXR100030B
Standby Power Consumption
13W+/-0.5W
Communication
Can Bus
Parallel Quantity
<60 Pieces
Efficiency(Full Load)
>95.5%
After-Sales Service
on Line Support and Site Guidance
Type
Fast EV Charging Station
Certification
CE, ISO, TUV, RoHS
Warranty
12 Months
Transport Package
Wooden, Carton
Specification
85*360*459
Trademark
MXRWELL
Origin
Shijiazhuang, Heibei, China
HS Code
8504409999
Production Capacity
300000pieces/Year
Product Description

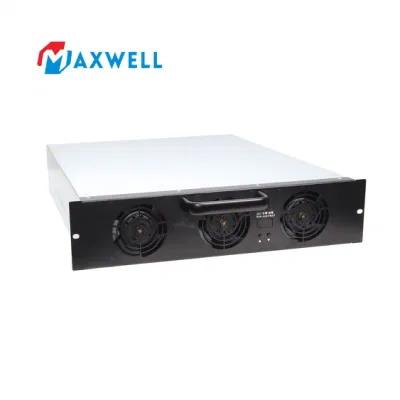

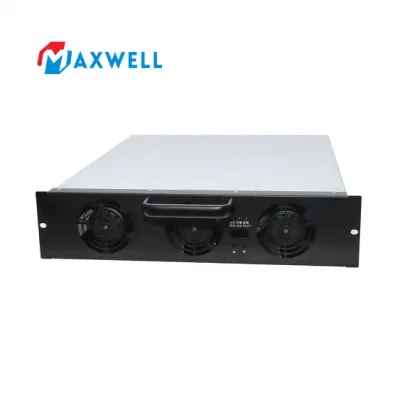

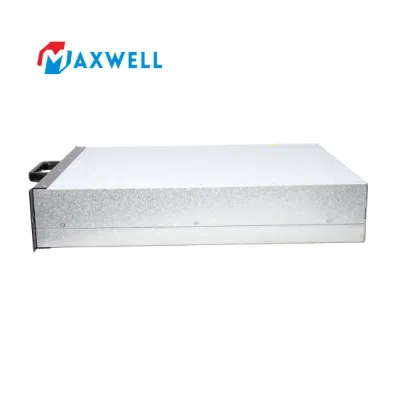

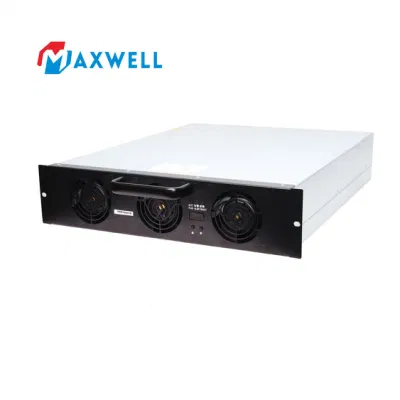

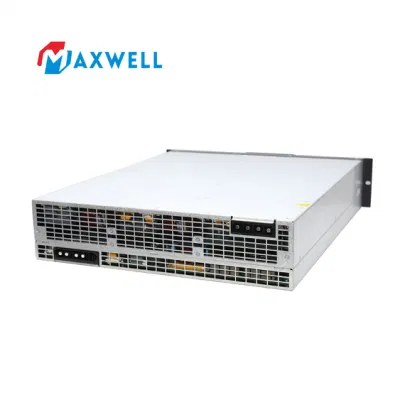

MXR100030B is a charging power module developed for the shortage of charging pile industry. It has prominent advantages in the two major industries of ultra-high full-load operating temperature and ultra-wide constant power range. At the same time, high reliability, high efficiency, high power factor, high power density, wide output voltage range, low noise, low standby power consumption and good EMC performance are also the main characteristics of the module.
EXCELLENT ADVANTAGES
>Ultra-high
Full-load operating temperature 55ºC
MXR100030B can output fullpower at 55ºC. effectively ensuring the charging speed in high temperature environment.
>Ultra-wide
Output constant power range 300v-1000v
MXR100030B's ultra-wide output voltage range and ultra-high output power are suitable for charging various electric vehicles and greatly improve the charging speed.
MAIN FEATURES
Ultra-wide output voltage range. 100~1000VDC.suitable for a wide range of EVs.
Ultra-high output power. in 300v-1000v output voltage,30kW constant power output;
Wide operating temperature range at -40C-55ºC.
Full load efficiency is higher than 95.5%. high efficiency in the whole the working range, and more power saving.
Ultra-low noise, enhance user charging experience.
The current in the low-voltage area does not shrink, and the charging speed is faster;
The module is built with residual pressure relief loop to reduce system cost and improve system reliability.
EXCELLENT ADVANTAGES
>Ultra-high
Full-load operating temperature 55ºC
MXR100030B can output fullpower at 55ºC. effectively ensuring the charging speed in high temperature environment.
>Ultra-wide
Output constant power range 300v-1000v
MXR100030B's ultra-wide output voltage range and ultra-high output power are suitable for charging various electric vehicles and greatly improve the charging speed.
MAIN FEATURES
Ultra-wide output voltage range. 100~1000VDC.suitable for a wide range of EVs.
Ultra-high output power. in 300v-1000v output voltage,30kW constant power output;
Wide operating temperature range at -40C-55ºC.
Full load efficiency is higher than 95.5%. high efficiency in the whole the working range, and more power saving.
Ultra-low noise, enhance user charging experience.
The current in the low-voltage area does not shrink, and the charging speed is faster;
The module is built with residual pressure relief loop to reduce system cost and improve system reliability.
Input Characteristics
| Item | Parameters |
| Input Voltage | 260Vac-530Vac, three-phase+PE |
| Input Current | <60A |
| Grid frequency | 45Hz-65Hz |
| Power Factor | ≥0.95(6kw≤output power≤15kw); ≥0.98(15kw≤output power≤30kw) |
| ITHD | ≤5%(15kw≤output power≤30kw) |
Output Characteristics
| Item | Parameters |
| Output Power | 30kw |
| Voltage Range | 100-1000Vdc |
| Current Range | 0-100A continuously regulated |
| Rated Current | 30A |
| Voltage stabilized accuracy | ≤±5%(100v-1000v,0-20MHz) |
| Current stabilized accuracy | ≤±1%(output current 20% rated current-100% rated current value) |
| Current Sharing Imbalance | ≤±3% |
| Ripple Peak-to-Peak | ≤1% |
Generally, we pack our goods in kraft carton with pallets or not.
If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.
1) Can you explain the differences of global DC fast charging standards?
Till now, there are 5 kinds of DC fast charging standards: CCS-1, CCS-2. CHAdeMO, GB/T and Tesla.
2) If we purchase your EV DC charger module, how to get your after-sales support?
Under normal circumstances, we will provide comprehensive after-sales technical training, including providing written training materials, training videos or inviting customers' technical personnel to face-to-face training to help customers master parts replacement and basic maintenance work. When encountering an urgent situation, we will also send professional technicians to provide on-site support.
3)What are your customized services?
We provide various OEM and ODM solutions, details to be based on customer's requirements.
4) What is your terms of payment?
T/T in advance or Irrevocable L/C at sight.
5) How about your delivery time?
The delivery would be made with 2-3 weeks after the order to be confirmed.
