Basic Info.
Model NO.
EV-S AC7K-S
Start Method
Plug & Charge/RFID Card+APP
RCD
30mA Type a + DC6ma RCD
Input/ Output Voltage
3 Phase
Output Current Range
Max 32
Charging Standards
IEC 62196-2 (Type 2)
Communication
LAN/4G(Optional)+WiFi (Optional)
Input Voltage Range
400VAC
Protection Degree
IP65
OEM/ODM
Support
Transport Package
Polybag + Carton
Specification
60*55*28 cm
Trademark
Hyliess
Origin
Hunan, China
HS Code
8504409999
Production Capacity
50000pieces/Month
Product Description

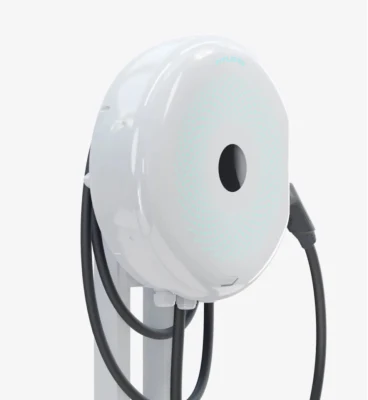

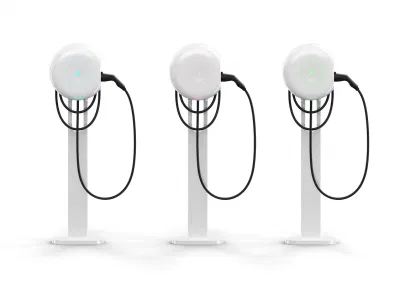

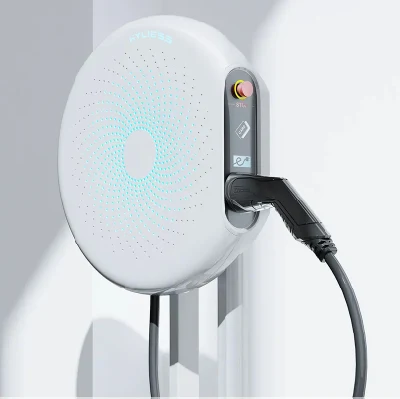

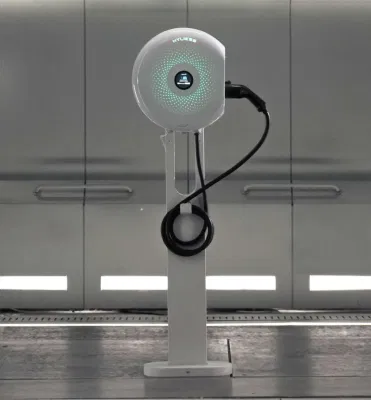

Product pictures
Product Features
Products Benefits
Company profile
FAQ
1. How to install EV charger(EV-S)?
You can operate according to our installation video and installation manual; If you choose door-to-door installation service, professional hyliess engineers will come to serve you in your regions, please contact us for details.
| Interstellar (Commercial Use) | ||
| Rated Power | 7kw | 22kW |
| Input/Output Voltage | Single-Phase 230V | Three-Phase 400V |
| Weight | 5KG | 7.5KG |
| Model Number | EV-S AC7K-C |
| Input Voltage Range | Single phase 230 V |
| Rated Output Power | 7KW |
| Output Current Range | 32A Max |
| RCD | 30MA Type A + DC6mA RCD |
| HMI | LED Breathing Light |
| Charging Standards | IEC 62196-2 (Type 2) |
| Protection | IP65/IK10 |
| Authorization Method | NFC + RFID Card + Plug and Play + APP |
| Warranty | 3 Year |
| Cable Length | 3M Cable with Type 2 Plug (5M Customizable) |
| Installation Method | Wall-mount/Floor-mount ( Pedestal Sell Separately) |
| Frequency | 50Hz |
| Authorization | NFC / RFID / Plug and Charge / APP optional) |
| Metering | MID Meter (optional) |
| Communication Method | LAN / 4G / WIFI (optional) |
| Communication Protocol | OCPP1.6J (can be updated to 2.0) |
| Installation | Floormounted / Wall-mounted |
| Operation Temperature | -30ºC - 55ºC |
| Operation Altitude | ≤2000m |
| Relative Humidity | 5%----95% |
| RCD | TypeA + DC 6mA |
| EMC | Class B |
| Certification | CE / TR25 / TUVMark / RCM |
| Color | White / Silver |
Product Features
| Innovative design: | EV-S is an artwork designed to improve the charging experience with the breakthrough of the traditional appearance. |
| LED Description: | The LED light shows the charging status by color changes and it adopts breathing light to avoid direct glare at human eyes. |
| Fast charging: | Fully dynamic charging power. 7KW for single phase, 22KW for three-phase. |
| Easy to use: | User-friendly design, easy for installation, maintenance, and use. |
| Compatible with every EV: | EV-S uses Type 2 connector that can charge any EVs on the market. |
Products Benefits
| Smart charging | |
| Dynamic load management | DLM is a system to supervise and manage electricity distribution and it defines the real-time power distribution strategy for all chargers connected and realizes optimized charging process. |
| Smart functionality | Adapt intelligent algorithms to automatically adjust charging speed and provide optimal charging. |
| High value quality | |
| Durable enclosure | With scratch-resistant, corrosion- resistant enclosure, Interstellar can be able to perform efficiently in harsh environments. |
| Future-proof flexibility | App control, data track and remote software update. |
| Multiple connectivity options | Support connectivity method of Wi-Fi,Bluetooth, 4G and Ethernet. |
| Safety protection | |
| O-PEN earth fault protection | Provide O-PEN earth fault protection which complies with BS 7671 requirement to use in TNCS supply system. |
| Integrated electrical protections | Over current protection, over/under voltage protection, over temperature protection, lighting protection, short circuit protection, RCCB, RCM, etc. |
| Protection degree | lpó5, IK10 |
| Certification | CE,TR25,TUV |
Company profile
Hunan Hyliess New Energy Technology Co., Ltd.
+ Energy storage products and hydrogen energy products.
+ 8 Years of experience
+ Residential solar energy storage system
Commercial use solar energy on/off grid system solution
Industrial solar energy storage on/off grid system solution
Micro-grid off-grid system solution
+ A R&D team with more than 70 specialists.
+ 38 patents in lithium battery sector and hydrogen energy sector.
+ 2 factories and more than 100,000 m2 meters factory area
+ 5 GWh Energy storage products' annual output value.
+ Energy storage products and hydrogen energy products.
+ 8 Years of experience
+ Residential solar energy storage system
Commercial use solar energy on/off grid system solution
Industrial solar energy storage on/off grid system solution
Micro-grid off-grid system solution
+ A R&D team with more than 70 specialists.
+ 38 patents in lithium battery sector and hydrogen energy sector.
+ 2 factories and more than 100,000 m2 meters factory area
+ 5 GWh Energy storage products' annual output value.
FAQ
1. How to install EV charger(EV-S)?
You can operate according to our installation video and installation manual; If you choose door-to-door installation service, professional hyliess engineers will come to serve you in your regions, please contact us for details.
2. What is the DLM? Does it support this system?
Dynamic Load Management (DLM) is a software-based solution designed to manage energy when multiple charging stations are working at the same time. DLM can dynamically allocate power through intelligent algorithms to charge multiple EVs simultaneously in the most effective way. Hyliess equipped with open interfaces, all models support DLM system.
3.How to choose the charging power of EV Charger?
EV-S is available in 7kW/22kW, the greater the power, the faster the charging speed. The charging speed depends on the limitation of your vehicle's battery, we will provide the maximum power output according to your vehicle's needs.
4.How long does it take to charge an electric car?
The charging time of an electric vehicle depends on three factors: the EV charger type, the maximum available power of EV charger, and the EV battery capacity.
Since charging piles can be defined by their maximum rated power-slow (3kW), fast (7-22kW) and Rapid (43kW+), for an ordinary EV, the general full charge time is as follows:
Slow AC 3kW: 6-8 hours
Fast AC 7kW:3-4 hours
Rapid AC/DC 43/50kW: 30-45 minutes to 80%
Dynamic Load Management (DLM) is a software-based solution designed to manage energy when multiple charging stations are working at the same time. DLM can dynamically allocate power through intelligent algorithms to charge multiple EVs simultaneously in the most effective way. Hyliess equipped with open interfaces, all models support DLM system.
3.How to choose the charging power of EV Charger?
EV-S is available in 7kW/22kW, the greater the power, the faster the charging speed. The charging speed depends on the limitation of your vehicle's battery, we will provide the maximum power output according to your vehicle's needs.
4.How long does it take to charge an electric car?
The charging time of an electric vehicle depends on three factors: the EV charger type, the maximum available power of EV charger, and the EV battery capacity.
Since charging piles can be defined by their maximum rated power-slow (3kW), fast (7-22kW) and Rapid (43kW+), for an ordinary EV, the general full charge time is as follows:
Slow AC 3kW: 6-8 hours
Fast AC 7kW:3-4 hours
Rapid AC/DC 43/50kW: 30-45 minutes to 80%
