Product Description
A wall-mounted electric vehicle (EV) charger is a device that is mounted on a wall and used to charge the battery of an electric vehicle. It typically consists of a charging cable with a plug on one end that is plugged into an outlet, and a connector on the other end that is plugged into the EV. The charger converts the AC power from the outlet into DC power, which is used to charge the EV battery.
Wall-mounted EV chargers are generally more convenient than portable chargers, as they are permanently installed and do not need to be carried around. They are also typically more powerful, with higher charging speeds, and can charge an EV battery much faster than a portable charger.
There are various types of wall-mounted EV chargers available, with different levels of power and charging speeds. Some are designed for use in residential settings, while others are intended for commercial or public use. Most wall-mounted EV chargers can be installed by a qualified electrician, and may require additional electrical wiring or modifications to the electrical system in order to be installed properly.

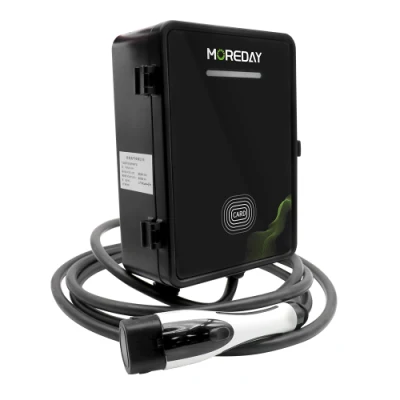

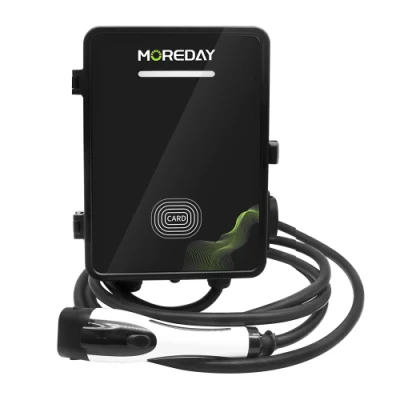

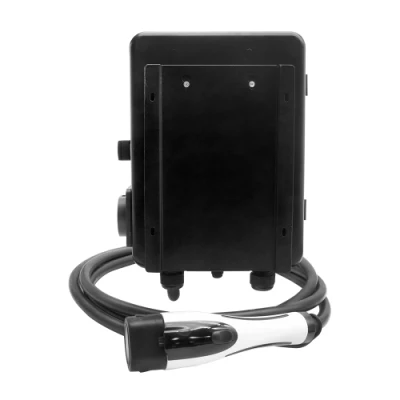

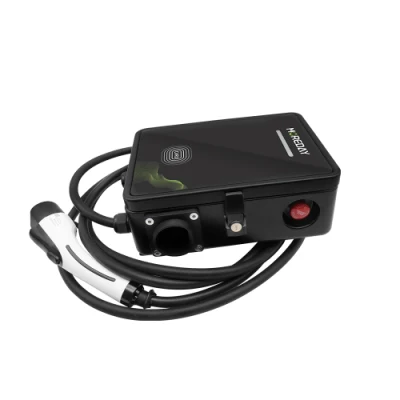

MOREDAY 7KW EV CHARGER
| Parameter | Product model | Dark house Series | |
| Structure | Size(mm) | 350(H)*240(W)*95(D)mm | |
| Installation | Wall-mounted Type / Floor-standing Type Installation | ||
| Charging cable | 5M(16.4FT) standard, 7.5m / 10m or other size customizable | ||
| Weight | 8.0kg (Including charging gun) | ||
| Electrical Specifications | Input voltage | AC220V±20% / AC380V±10% | |
| Frequency rating | 45~65HZ | ||
| Power rating | 7KW /11KW /22KW Optional | ||
| Measuring accuracy | 1.0 grade | ||
| Output voltage | 7KW:AC 220V±20% 11/22KW :AC 380V±10% | ||
| Output current | 7KW:32A 11KW:3*16A 22KW:3*32A | ||
| Measurement accuracy | OBM 1.0 | ||
| Function | Indicator light | Y | |
| 4.3 inch display screen | Optional | ||
| Communication interface | WIFI/4G/OCPP1.6/LAN Optional | ||
| Operating conditions | Working temperature | -40~+65ºC | |
| Relative humidity permission | 5%~95%(non-condensation) | ||
| Maximum altitude permission | ≤3000m | ||
| IP grade | ≥IP55 | ||
| Cooling way | Natural cooling | ||
| Applicable ambient | Indoor/outdoor | ||
| ECT | UV resistance | ||
| MTBF | ≥100000H | ||
1. Are you trading company or manufacturer ?
We are solar system manufacturer,Our cumulative installed capacity reached 5GW+.
2.Can you supply samples for checking ?
Yes, we can supply free samples for all client.
3.How long is your delivery time?
A1)For Sample: 1-2Days ;
A2)For small Orders: 3-5Days;
A3)For mass Orders:7-10Days;
Anyway, It depend on order qty and payment time.
4.Do you accept OEM business?
We accept OEM with your authorization.
5.How is the after-sale service?
We offer spare parts accordingly and English-speaking engineer offer online service.
6. what kind of certificate you have ?
We have CE, CB,TÜV,SAA etc.
7.What is the service offered by company?
We have the professional engineer team which can design and develop the mould to arrive different customer requirements. We also have the professional sales team to offer good service from pre-sale to after-sale.
If you have another questions, pls feel free to contact us.
