- Overview
- Product Description
- what we provide
Basic Info.
Model NO.
HK Series multi-standard charging pile
Output Voltage
150-750VDC
Thdi
No More Than 5%
Efficiency
Mini 95%
IP Class
IP54
Ik Class
Ik10
Communication
2g, 3G, 4G, 10/100base-T Ethernet
After-Sales Service
Remote Online Guidance and Onsite Service
Type
Fast Charging and Slow Charging in One Station
Certification
CE
Warranty
12 Months
Transport Package
Standard Oversea Shipment Packages
Specification
DC 60KW/120KW/180kw+AC 7kw/22kw/43kw
Trademark
Hici/Customized
Origin
China
HS Code
8504409999
Production Capacity
120 Set/Month
Product Description

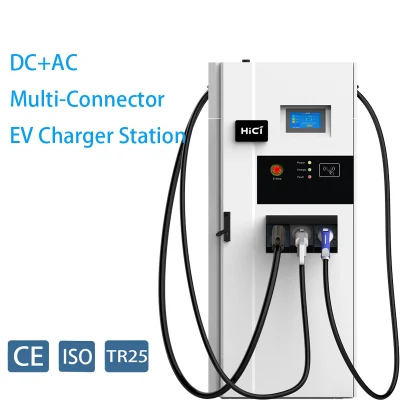

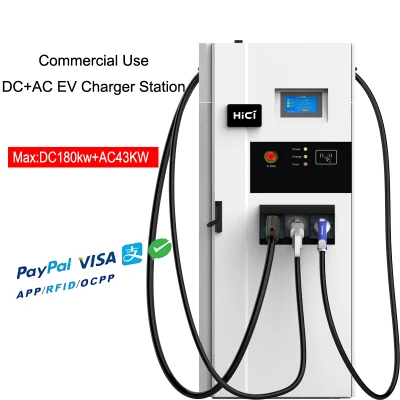

120KWDC Dual Connector +22 KW AC EV Charger Station
Feature :

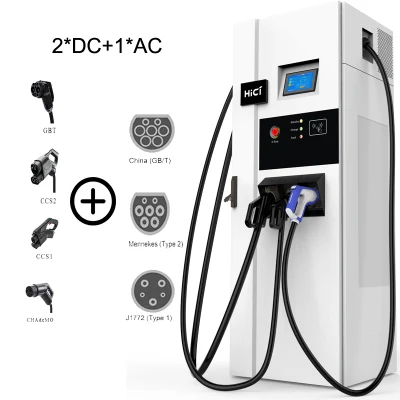

1.2*DC+1*AC
2.Max 180kw+43KW
3.7inch LCD TouchScreen
4.Commercial Use
(Support Paypal ,Google Pay ,Crediet Card,Apple Pay )
5.CCS2/GBT/CHAdeMO+Type 2/GBT
6.IP54,IK10
7.Used For EV Car ,EV Bus
8.Support English /French /Chinese/Spanish/
2.Max 180kw+43KW
3.7inch LCD TouchScreen
4.Commercial Use
(Support Paypal ,Google Pay ,Crediet Card,Apple Pay )
5.CCS2/GBT/CHAdeMO+Type 2/GBT
6.IP54,IK10
7.Used For EV Car ,EV Bus
8.Support English /French /Chinese/Spanish/
Russian
| Production Parameters | ||||
| Power | 60kw+7kw | 120kw+22kw | 180kw+43kw | |
| AC Input | Input Voltage | 400Vac±15% | 400Vac±15% | 400Vac±15% |
| Input Connection | L1+L2+L3+N+PE | |||
| Max Input Current | 110A+32A | 220A+32A | 330A+63A | |
| Frequency | 50 /60 Hz | |||
| Power Factor | >0.99@full load | |||
| Efficiency | 95% | |||
| DC Output | Output Voltage Range | DC 150V-1000V,AC230-400V | ||
| Max. Output Current | GBT/CCS 250A ,Type 2/GBT 32A/63A | |||
| Optional Connector | GBT/CCS2/CHAdeMO | |||

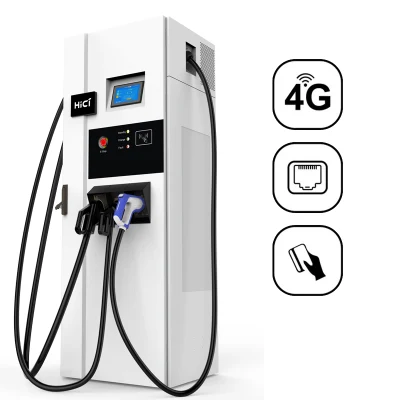

| Communication | External | Bluetooth/Ethernet/4G/3G | ||
| Internal | OCPP 1.6 JSON | |||

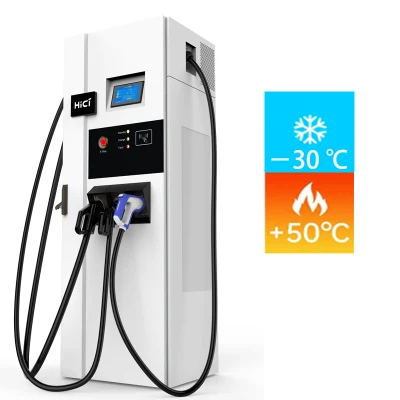

| Environmental | Operating Temperature | -30~55ºC | ||
| Humidity | 5%-95% RH, non-condensing | |||
| Installation Method | Floor Mounted | |||
| Altitude | 2500m | |||
| Cooling Method | Fan Cooling | |||
| IP Level | IP54 | |||
| Mechanical | Cable Length | 5M (Length Customized acceptable) | ||
| Certification | CE,TR25 | |||
| Size & Weight | Size | 750*630*1980mm | ||
FAQ
A: Generally, we pack our goods in neutral brown cartons. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.
Q2. What is your term of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q3. What is your term of delivery?
A: FOB, CFR, CIF, DDU.
Q4. How about your delivery time?
A: Generally, it will take 7 to 25 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q6. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
