Basic Info.
Product Description
Product Description
| Database | ID4 BYD Chinese Standard AC Portable EV Charger For Southeast Asia | |||
| Name | GC- A J - 0 7 0 3 2 | GC- A J - 0 9 0 4 0 | GC- A J - 1 1 0 48 | |
| A ppe a r anc e s truc tur e | Model | Plug in and charge , RFID to charge, Blue Tooth, APP | ||
| Enclosure | Charging gun PC9330/Control box Sheet Metal/Glass Style | |||
| Size | Charging Gun 240*98*70mm/Wall box 300*220*80mm( H*W*D) | |||
| Installation Method | Wall_Mounted/Collumn | |||
| Install Components | Column (Option) | |||
| Power Direction | Input(Down)& Output(Down) | |||
| Net Weight | About 5.6KG | About 6.7KG | ||
| Cable Size | 3*6mm2+0.75mm2 | 8AWG*2C+10AWG+18AWG | ||
| Cable Length | 5M or Negotation | |||
| Electrical index | Input Voltage | AC 240V | ||
| Input Frequency | 50Hz/60Hz | |||
| Max Power | 7.6KW | 9.6KW | 11.5KW | |
| Output Voltage | AC 240V | |||
| Output Current | 32A | 40A | 48A | |
| Standby Power | 3W | |||
| Environment index | Applicable Scene | Indoor or Outdoor | ||
| Work Humidity | 5%-95%(non-condension) | |||
| Work Temperature | "-30°C- +50°C" | |||
| Work Altitude | <2000M | |||
| Protection Class | Charging Gun IP67/Control Box IP54 | |||
| Cooling Method | Natural Cooling | |||
| Standard | SAEJ1772 | |||
| Flammability rating | UL94V0 | |||
| Certificate | UL,FCC | |||
| Functional design | Interface | LED Indicator Light / 5.6inch Display / Screen APP | ||
| Communication | 4G/WIFI/4G+WIFI/OCPP1.6 | L*W*H:460*300*250mm,A bout 7.8KG | ||
| Packaging specification | Box gauge/weight | L*W*H:460*300*250mm A bout 6.7KG | ||
| Safety design | Over Current Protection,Residual Current Protection,Ground Protection,Surge Protection,Over/Under Voltage, Frenquency,Temperature Protection | |||

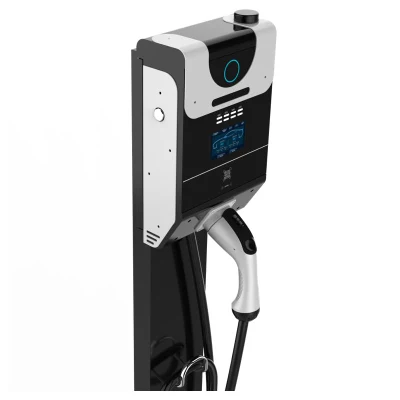

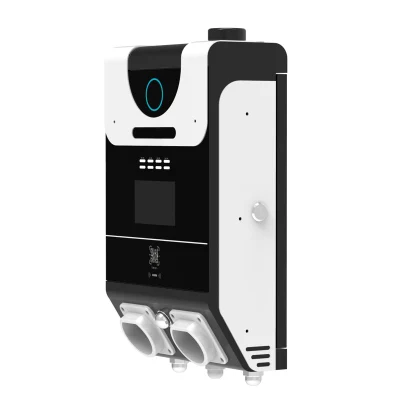

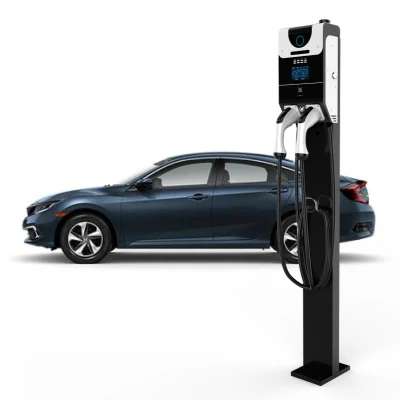

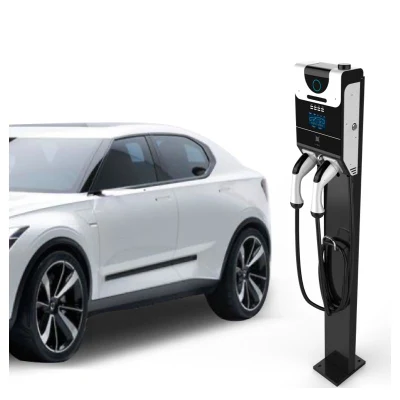

Details Photos:
Packing & Shipping
Company Profile:
As a professional EVSE manufacturer, GANCHEN focuses on providing customers with professional charging
equipment that is safer, more efficient and more stable. Ganchen′ S products are oriented to both household
and commercial markets in the EV charging field. Our main products include EV charging stations (Basic, APP,
RFID, OCPP), Portable EV chargers, EV charging cables, DC charger station,EV connectors and EV adapters.
Our company has become an important partner of domestic and foreign renowned automobile manufacturers.
The Company has passed quality, environment, occupational health and safety and other authentications, and
its products are qualified under CQC, TUV, CE, RoHS etc.
FAQ
Q: Are you the factory or trading company?
A: We are factory with more than 10 years in the field of DC/AC power supply solution,
traction power supply and new energies. We warmly welcome you for the visit.
Q: How is the delivery time?
A: Generally, the delivery time between 7-30 days after getting client's payment.
For accurate info depends on the products and the quantity, we can make further
communication on this.
Q: Do you have MOQ requirements?
A: MOQ is 1 set for most of the products, only MOQ for 7KW, 11KW, 22KW ev charger
is 5 sets. 60Kw,120kw,160kw,MOQ1 pcs.
.
A: How long is your warranty time?
Q: We provide 2 years warranty for our clients.
Q: Can you provide customized service?
A: Yes. we have been getting involved with the OEM and ODM projects since 2014.
So that we can provide professional customized service for our clients.
Q: Do you have after sales service?
A: Yes, we have the after-sales service team.
Our after-sales engineer Can give the support and instruction by video or phone call
while needed.
Q: Do you make the test after finishing production?
A: Yes, our production engineer team will do the test while goods finished, and we will
prvoide the test info to clients for reference before delivery.
