Basic Info.
Model NO.
CFDC-006
Charge Method
Normal Charge
Product Name
Portable DC EV Charger Station
Application
Fast Electric Car Charging
Output Power
7kw / 15kw / 20kw / 30kw / 40kw
IP Grade
IP 44
Cable Length
5 Meters, Support Custom
Interface Standard
CCS +Chademo+Gbt
Advantage
LED Display, No Payment. Optional: Ocpp
MOQ
1PCS
Custom Service
Support Customized Colors, Logos, and Packaging
After-Sales Service
Remotly After Sales Service
Type
Fast EV Charging Station
Certification
CCC, CE, ISO, TUV, RoHS
Warranty
24 Months
Transport Package
Wooden Stake + Cardboard-Shell
Specification

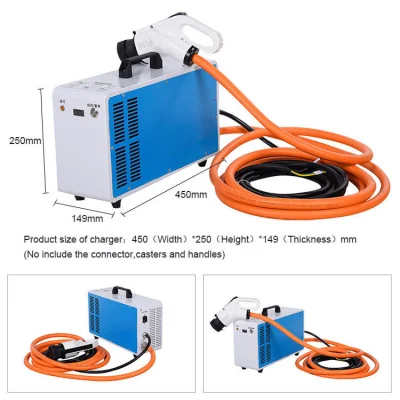

450x150x310
Trademark
Champion
Origin
China
HS Code
8504401500
Production Capacity
5000PCS Monthly
Product Description
Factory Supplier Fast EV Charger IP43 Household Charger CCS2 CHADEMO Charging Station 20A-120A Electric Car Charger
We support ev charging station with different power according to customer requirements
| Product Parameters | |||||
| Model | FCM07750 | FCM14750 | FCM14750 | FCM14750 | FCM14750 |
| Output Power | 7KW | 15KW | 20KW | 30KW | 40KW |
| Input voltage | 90-265V | 260-475V | |||
| InputConnection | L+N+PE | 3P+N+PE | |||
| Input Current | 32A | 25A | 32A | 45A | 64A |
| Output Voltage | 200-750V(200-1000v optional) | ||||
| Output Current | 20A | 25A/37A | 33A/50A | 50A/100A | 66A/120A |
| Frequency | 50/60 Hz | ||||
| Power Factor | >0.99@rated voltage | ||||
| Efficiency | 95% | ||||
| TFT-LCD Touch Panel | Digital tube | Voice navigation/Digital tube | 4.3-inch display | ||
| Dimension(mm) | 450x150x310 | 490x386x158 | 580x180X430 | 650x200X445 | |
| Weight | 20KG | 25KG | 28KG | 44KG | 60KG |
| Auxiliary source | 12V(24V optional) | ||||
| Operating Temperature | -20C~+50°C | ||||
| Altitude | 2000M | ||||
| IP LEVEL | IP43 | ||||
| ANTI-COLLISION CLASS | IK8above | ||||
| Input cablelength | 5M(CUSTOMIZATION ACCEPTABLE) | ||||
| Gun cableLength | 3M(CUSTOMIZATION ACCEPTABLE) | ||||
| Applicable standard | GB/T20234 / EN62196 / EN61851-23,JEVSG105/CHADEMO | ||||
| Communicationprotocol | GBT27930/ CHADEMO 2.0/ DIN 701210CPP 1.6 (SON ,S0 15118 | ||||
DC EV Charging, we also support 30KW,60KW,120KW,180KW,240KW. One port charging gun and double charging gun.
Can provide charging equipment that meets the following standards
Our EV car chargers have been sold to over 40 countries , such as Germany, India, USA,
Canada, Netherlands, Switzerland, India, Slovakia, Bolivia, Argentina, Netherlands, Switzerland etc.
The Charging piles are widely used in Residential, Wokeplace Business, Gas Station,
High-speed Service Station, Parking Lot,Household.
1:Why choose us?
A:We are professional EV charger manufacturer. We own mastered core R&D capabilities such as intelligent control, Internet of Things, rough data, artificial intelligence, and has been recognized by national high-tech enterprises and has more than 100 patented technologies.
2: How can we guarantee quality?
A: Always a pre-production sample before mass production; All major components are tested before assembly and each charger is fully tested before shipped.
3: How long to fully charge a car?
A: To know how long to charge a car, you need to know the OBC(on board charger) power of the car, the car battery capacity, the charger power. The hours to fully charge a car =battery kw.h/obc or charger power the lower one. For e.g, the battery is 40kw.h,obc is 7kw, charger is 22kw, the 40/7=5.7hours. If the obc is 22kw, then 40/22=1.8hours.
4:Can I order some samples? How long will ship to my address?
A:Yes, sample available, and usually 7-10 days to production and 7-10 days to express.
5.Can I custom our logo, package and cable length?
A: Yes dear, we support custom printing your Logo, package,plug and cable. We support GB/T, US, EU, JPN Standard.
6.Can I have a discount price and better service?
A: Of course , for first cooperation and our VIP customers, we all have different plan of discount. And please don't worry, we always provide best service of every customer friend. Please to contact us ! Welcome contact Now!
