Basic Info.
Model NO.
EV-11KEU-02
Input Voltage
DC24V
Type
Fast EV Charging Station
Warranty
24 Months
Charging Standards
Type2 Chademo
Charging Port
Type 1, Type 2
Transport Package
Color Box
Specification
462*302*248EV Charging Station (L*W*H)mm
Origin
China
HS Code
8504409999
Production Capacity
50000EV Charging Station Per Month
Product Description

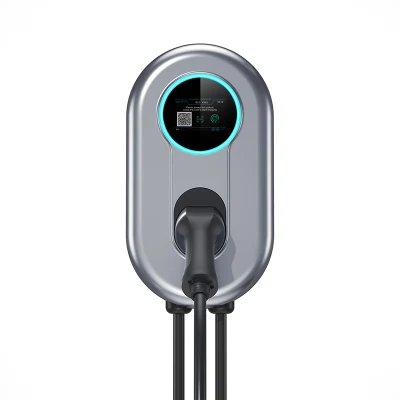

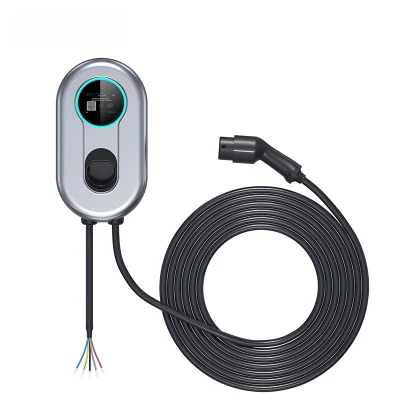

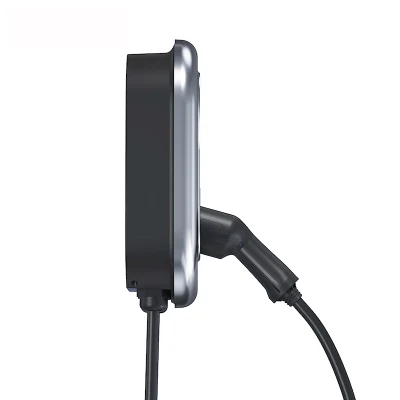

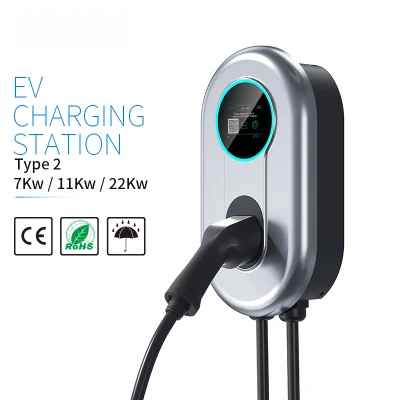

Factory Price Type 2 22KW Fast Charging EV Charger Station for Home Use
PRODUCT DETAIL:
Net weight: 4.5Kg/ Gross weight: 5.5Kg
Certificate/Compliance: CE
Any questions or need a catalog, welcome to send a message to us!
Ecomate EV charger allows you to charge your electric car in just a few hours while you sleep, work, enjoy a meal, or spend time with your family. A Mode 3/ level 2 charger safely delivers AC Power to your electric vehicle or plug-in hybrid so you're always "fueled up" and ready to go.
Ecomate EV charger is the most simple and modular design device that replaces traditional chargers with a PCBA structures. It is integrated and built-in Type B RCCB, smart EV controller, and Din contactor only, which is very popular for homes, communities, public places, and workplaces. It enables us to provide you fast and reliable charging solution.
Electrical performance
Input AC voltage: Single phase 220V-240V, 3-phase 415V from Grid power or inverted home solar power system
Output current: 16, 32A, or customized by manual dip switch
Protection technology
DC fault & AC leakage protection: Integrated 30mA Type B RCCB
Overload protection: Circuit breaker(MCB)(in upstream domestic installation,not included in scope of delivery)
ABOUT Qinxian--
Shenzhen Qinxian Industrial Co., LTD (CHARGERSY)was founded in 2010, and organized by Qinxian GROUP.
We are the most professional connoisseurs of home EV charging stations, the earliest technical experts who developed home EV charging piles are in our company, and we produce the most competitive products according to the strictest standards of the industry. We will be the best partner for your company in China.
Qinxian, is a professional manufacturer of Green new energy and peripheral products. Mainly manufactures, sells, installs, and services urban Smart LED street light systems, intelligent solar lamp control systems, LED high power lighting lamps, Low voltage distribution switch control equipment, electric vehicle switching equipment, industrial and commercial photovoltaic power systems, etc.
Qinxian has a perfect quality management system and independent product development capabilities. The company has passed the ISO9001 / ISO14001 / OHSAS18001 three major quality, environment, occupational health, and safety certifications.
Our Products have passed TUV, SGS, CB, CE, ROHS, and other international safety certifications, and many products have national utility models and invention patents.
At present, Qinxian has exported to Southeast Asia, Europe, America, Australia, and Pacific countries. In recent years, our company is continuously developing emerging countries and regions such as Africa and the Middle East. The quality and service of Youwen have also been unanimously received and praised by overseas customers.
Looking to the future, Qinxian people will carry forward the entrepreneurial spirit of modesty, innovation, integrity, passion, dedication, responsibility, gratitude, co-learning, uniting as one, and sharing the future.
PRODUCT DETAIL:
| Power: | 22KW max |
| Input/output power: | 400VAC±20%-50/60Hz-32A-3 phase |
| Charging interface: | Type 2 wire length 5M output, 1m input |
| Protection level: | IP65 |
| Shell: | Plastic PC94V0 |
| Installation: | wall-mounted/standing pole type |
| Operating temperature: | -30ºC to +55ºC |
| Product size: | 320*230*100(L*W*H)mm/ Package size: 462*302*248(L*W*H)mm |
Certificate/Compliance: CE
Any questions or need a catalog, welcome to send a message to us!
Ecomate EV charger allows you to charge your electric car in just a few hours while you sleep, work, enjoy a meal, or spend time with your family. A Mode 3/ level 2 charger safely delivers AC Power to your electric vehicle or plug-in hybrid so you're always "fueled up" and ready to go. Ecomate EV charger is the most simple and modular design device that replaces traditional chargers with a PCBA structures. It is integrated and built-in Type B RCCB, smart EV controller, and Din contactor only, which is very popular for homes, communities, public places, and workplaces. It enables us to provide you fast and reliable charging solution.
Electrical performance
Input AC voltage: Single phase 220V-240V, 3-phase 415V from Grid power or inverted home solar power system
Output current: 16, 32A, or customized by manual dip switch
Protection technology
DC fault & AC leakage protection: Integrated 30mA Type B RCCB
Overload protection: Circuit breaker(MCB)(in upstream domestic installation,not included in scope of delivery)
