Basic Info.
Model NO.
QMT-AC7KW-2003
Cable Material
TPU
Power Plug
Cee
Color
Black
Logo/Pattern
Customzied
Transport Package
Carton Box
Specification
22.5*10*5cm
Trademark
EE S&T
Origin
China
HS Code
8504409999
Production Capacity
3000
Product Description
We don't fabricate many different kinds of EV chargre, but each of electric charging car charger is top quality.
Product Overviews:

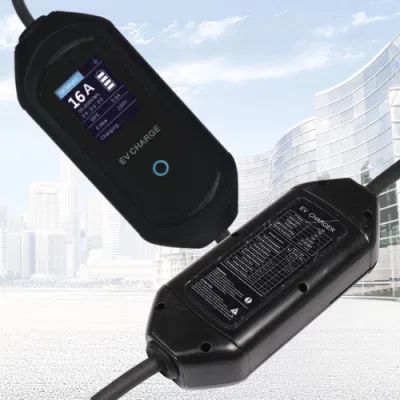

1. It features a sleek contemporary design in black , with LCD display, no need to instal.
2. Electric Vihicle charger compatible with all Ev and plug-in hybrid vehicles

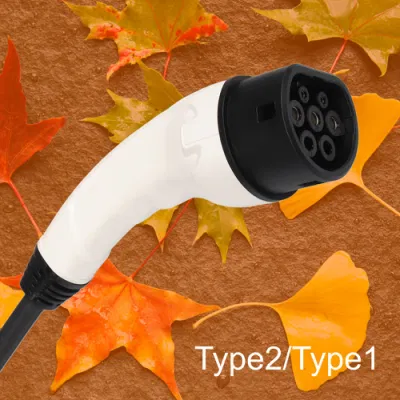

3. Conform to the provisions and requirements of IEC62752. High compatibility. It can charge all EV with Type 2 inlets, correctly and effectively.
4. Best value portable electric vehicle charger for overall price-performance
5. Easy operation.Simply connect the plug with the EV inlet, then the charger will automatically detect the connection status and handshaking protocol automatically, and starts charging.
6. Cable length can be adjustable, 3meters, 5meters and 7meters,
7. Compatible will all Type 2 EV
8. OEM and ODM services can be chosen.
9. Haibafang specialise in the comprehensive manufacturing of ev chargers

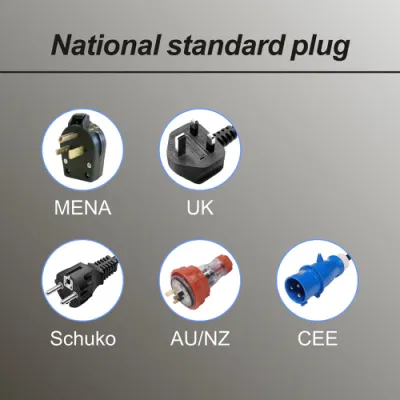

Power Plugs can be chosen,
Technical Parameters,
Certificates:
Production workshop:
Testing Dept:
R&D Dept:
On-site installation:
Some of certificates:
FAQ:
Q1: What is your terms of packing of EV Charger?
A: PE bag polystryrene Carton box
Q2: What's the MOQ?
A: MOQ:50pcs.Customized service is available.
Q3: Can you produce according to the samples?
A: Sure. we can produce as per your samples or technical drawings. We can build the molds and fixtures.
Q4: What is your sample policy?
A: We can provide sample if we have ready parts in stock, but customers need to bear the fee both for samples and courier.
Q5: Do you test all your goods before shipment?
A: Yep, before shipment all goods would be 100% tested that will ensure we will deliver the best to our customers.
Different shipping ways can be chosen:
Company Profile:
Haibafang is a new energy technology enterprise integrating R&D, production, sales and service of charging piles.
We own a professional R & D team, professional experimental equipment and laboratories to create high-quality and high-stability products, and we introduce advanced management concepts.
Closely following the national "global new energy Internet" strategy, Haibafang is committed to building a whole new energy industry chain and building a new energy industry city, relying on its industrial advantages in the field of new energy, using the Internet of Things, cloud data and supply chain cloud platform system to provide integrated services for the development of urban new energy.
Facing the future, Haibafang will adhere to the core concept of "quality-oriented, excellent technology", provide users with better products, technologies and services, and make the greatest contribution to promoting the development of the national new energy industry.
Product Overviews:
1. It features a sleek contemporary design in black , with LCD display, no need to instal.
2. Electric Vihicle charger compatible with all Ev and plug-in hybrid vehicles
3. Conform to the provisions and requirements of IEC62752. High compatibility. It can charge all EV with Type 2 inlets, correctly and effectively.
4. Best value portable electric vehicle charger for overall price-performance
5. Easy operation.Simply connect the plug with the EV inlet, then the charger will automatically detect the connection status and handshaking protocol automatically, and starts charging.
6. Cable length can be adjustable, 3meters, 5meters and 7meters,
7. Compatible will all Type 2 EV
8. OEM and ODM services can be chosen.
9. Haibafang specialise in the comprehensive manufacturing of ev chargers

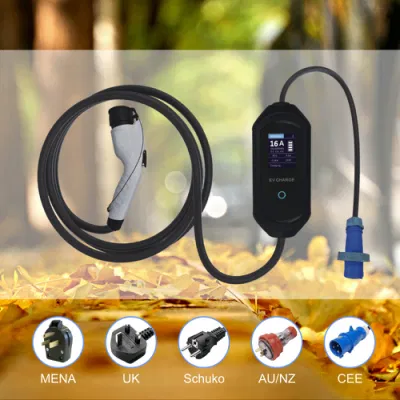

Power Plugs can be chosen,
Technical Parameters,
| Rated Charging current | 16A max |
| Rated voltage/Output Voltage | 220V AC |
| Standby power consumption | ≤5W |
| Leakage protection | RCD 30mA (Class A) |
| Frequency | 50/60Hz |
| Power frequency withstand voltage | 2500V AC |
| Operating temperature | -30ºC~+50ºC/5%~95% |
| Storage temperature | -40 ºC~+60 ºC |
| Enclosure rating | IP55 |
| Working Altitude | <2000M |
| AC charger size | 223*99*52mm |
| Agency Certification | CQC |
| Protection | CP abnormal protection, over voltage protection, under voltage protection, over current protection, leakage protection, over temperature protection, lightning protection |
| Product Weight | 1.68KGS |
Certificates:
Production workshop:
Testing Dept:
R&D Dept:
On-site installation:
Some of certificates:
FAQ:
Q1: What is your terms of packing of EV Charger?
A: PE bag polystryrene Carton box
Q2: What's the MOQ?
A: MOQ:50pcs.Customized service is available.
Q3: Can you produce according to the samples?
A: Sure. we can produce as per your samples or technical drawings. We can build the molds and fixtures.
Q4: What is your sample policy?
A: We can provide sample if we have ready parts in stock, but customers need to bear the fee both for samples and courier.
Q5: Do you test all your goods before shipment?
A: Yep, before shipment all goods would be 100% tested that will ensure we will deliver the best to our customers.
Different shipping ways can be chosen:
Company Profile:
Haibafang is a new energy technology enterprise integrating R&D, production, sales and service of charging piles.
We own a professional R & D team, professional experimental equipment and laboratories to create high-quality and high-stability products, and we introduce advanced management concepts.
Closely following the national "global new energy Internet" strategy, Haibafang is committed to building a whole new energy industry chain and building a new energy industry city, relying on its industrial advantages in the field of new energy, using the Internet of Things, cloud data and supply chain cloud platform system to provide integrated services for the development of urban new energy.
Facing the future, Haibafang will adhere to the core concept of "quality-oriented, excellent technology", provide users with better products, technologies and services, and make the greatest contribution to promoting the development of the national new energy industry.
