Product Description

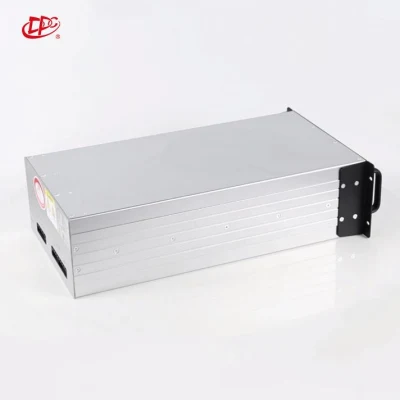

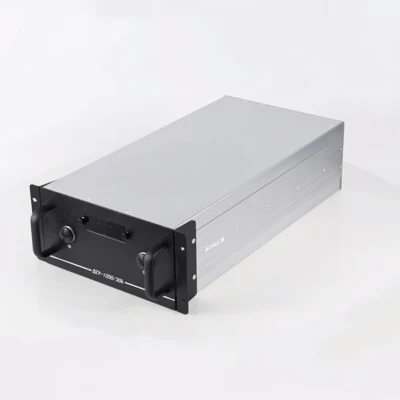

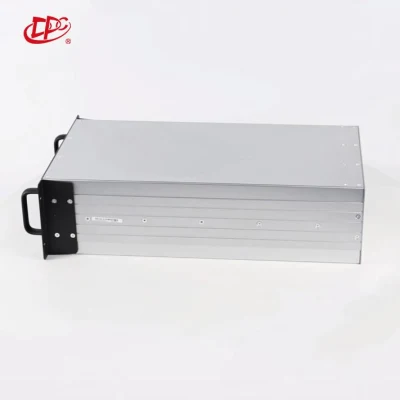

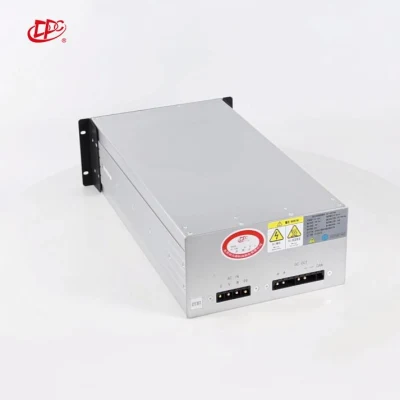

DZY-1000/30K liquid cooling charging module is a constant-power liquid cooling charging module designed and produced by DPC based on its years of research on power electronics and the abundant experience accumulated in the industrial and telecommunication sectors. This module has the features of high power density, high protection level, high efficiency in full voltage range, high power factor, strong environmental adaptability, long service life, etc.
It is suitable for DC chargers with different power levels. It can provide not only fast charging services for electric passenger cars, buses, logistics vehicles, engineering vehicles, and other vehicles, but also standard charging services for all types of battery swapping stations.
√ Wide Output Range: 200VDC-1000VDC; √ High Protection Level: IP54;
√ Wide Constant Power Range: 300VDC-1000VDC; √ High Power Density: over 30W/in3;
√ High Efficiency: ≥96.5%; √ High Power Factor: ≥0.99;
| Power Level | 30KW | Protection | AC input overvoltage and undervoltage protection, overtemperature protection, overcurrent protection, short circuit protection, etc. |
| Input Voltage Range | 380VAC±20% | ||
| THDI | ≤ 5% | Environment | Operating Temp.: -35ºC ~ 85ºC; Altitude: < 2000m; Relative Humidity: 5% ~ 95%. |
| Power Factor | ≥ 0.99 | ||
| Operating Frequency | 45Hz-65Hz | ||
| Output Voltage Range | 200VDC-1000VDC | Communication Interface | CAN bus Support module grouping |
| Constant Power Output Range | 300VDC-1000VDC | ||
| Current Stability (%) | ≤ ±1% | IP Grade | IP54 |
| Voltage Stability (%) | ≤ ±0.5% | Output Voltage Error | ≤ ±0.5% |
| Max. Efficiency | ≥ 96.5% | Output Current Error | Output Current ≥ 30A, ≤ ±1%; Output Current < 30A, ≤ ±0.3A. |
| Unbalance of Current Sharing | ≤ ±3% | Output Ripple Voltage | Effective Value: ≤ ±0.5%; Peak-to-peak Value: ≤ ±1%. |
| Cooling Method | Liquid cooling | Dimensions (H*W*D) | 132*256*498mm |
About Us
Beijing Dynamic Power Co., Ltd. (SH: 600405), deeply engaged in power electronics technology for almost 3 decades, strategically focuses on the three major business segments of data communication, green travel and renewable energy. It has more than 30 branches home and abroad, with services and products well received in over 30 countries and regions.
With solid foundation in power electronics technology and system integration development, DPC has increased and diversified its presence in the sphere of green travel, establishing itself as a provider of comprehensive solutions for essential e-mobility equipment. It has achieved self-research and self-production of power supply, main control, system and platform in fields of electric vehicle charging and battery swapping.
DPC is committed to providing customers with more reliable, efficient, and sustainable products and services as part of its aim to build a green world.
