Basic Info.
Model NO.
RSDC1000-480KW-L
Output Voltage Range Under Constant Powe
200-1000VDC
DC Output Current (a)
250A (Single Gun)
Output Power (Kw)
480kw
Cable Length: Charger Gun
5m (CCS), 5m(GB/T) Customized Acceptable
Charging Operation
Swiping Card / Scanning Code
Running Indication
Power Supply, Charging, Fault
Heat Dissipation Control
Liquid Cooling + Air Cooling
BMS Auxiliary Power Supply (V)
12/24
Power Distribution
Equipartition/Intelligent Distribution/Switching
After-sales Service
Pre-Sales Service and After-Sales Service
Type
Fast EV Charging Station
Certification
CCC, CE, ISO, TUV, RoHS
Warranty
24 Months
Transport Package
Standard Export Packaging
Specification
Dimension (H*W*D)(mm): 2183*1163*1056.4mm
Trademark
Ruisu
Origin
Mainland, China
HS Code
8504409999
Production Capacity
800PCS/ Month
Product Description

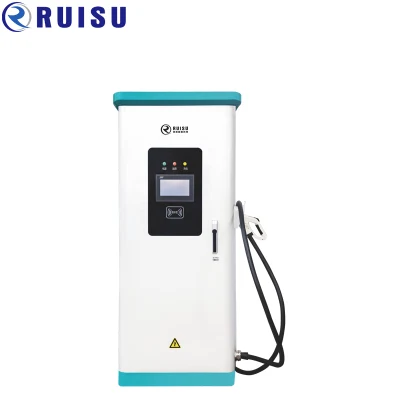

| Product Type | 480KW Split SUPER RAPID DC EV Charger |
| Product Model | RSDC1000-480KW-L |

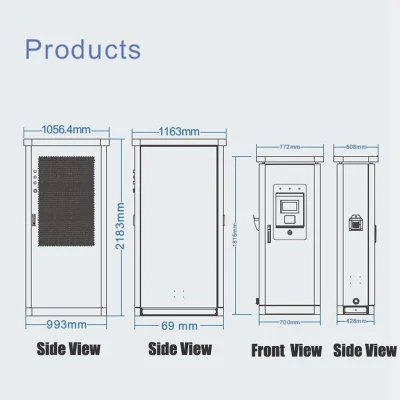

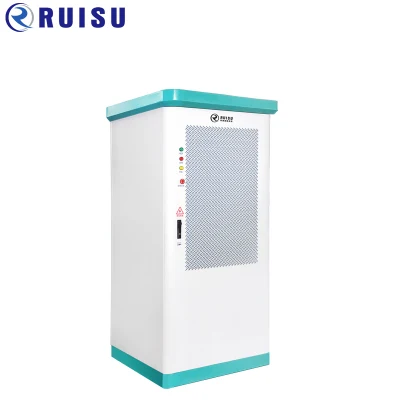

| Dimension (H*W*D)(mm) | Dimension of Main Cabinet:2183*1163*1056.4mm, Split Cabinet: 1815*772*508mm |
| Display Mode | 7" Color Touch Screen |
| AC Input Voltage Range (V) | 260-470VAC, 3P+N+PE (Wye connection) |
| AC Input Frequency (Hz) | 50 /60 Hz |
| Power Factor | ≥0.99 |
| Current Harmonics (THDI) | ≤5% |
| Efficiency | ≥96% (full load) |
| DC Output Voltage Range (V) | 200-1000Vdc((CCS) |
| Output Voltage Range under Constant Power (V) | 200-1000Vdc |
| DC Output Current (A) | 250A (single gun) |
| Output Power (KW) | 480KW |
| Length of Charging Gun (m) | 5 |
| Noise (dB) | <=65 |
| Charging Operation | Swiping card/scanning code |
| Running Indication | Power supply, charging, fault |
| Heat Dissipation Control | Air Cooling |
| BMS Auxiliary Power Supply (V) | 12/24 |
| Power Distribution | Equipartition/Intelligent Distribution/Switching |
| Altitude (m) | ≤2000 |
| Working Temperature (ºC) | -20~50 |
| Storage Temperature (ºC) | -40~70 |
| Average Relative Humidity | 5%~95% |
| Protective Function | Lightning protection, over-load, short-circuit over-temperature, electric leakage, emergency stop protection etc. |
| Charging Selection | RFID card, WeChat Official Account, Alipay |
| Communication Interface | CAN with standard configuration, Ethernet, RS485, RS232, GPRS |
| Protection Grade / Shell Material | Outdoor IP54 / sheet metal shell |
| Product Introduction | 1. Friendly visual interface, multiple information displays, prompt information, IC card information etc.; 2. Electric-energy acquisition system and charge accounting system provides the records of earning and spending. IC card and WeChat can be used for payment; When the electric vehicle is charging, the machine will automatically stop if the battery is full and remind the user through indicator light; 3. When the electric vehicle is charging, the machine will automatically stop if the battery is full and remind the user through indicator light; 4. In case of over-voltage, under-voltage, short-circuit, electric leakage and connection fault, the machine will stop charging and alarm through indicator light; 5. Industrial design, superior temperature adaptability, it has the long service life with protection grader of IP54; 6. The whole industrial chain of production mode for charging pile can sure the reliability of hardware. |
