Basic Info.
Model NO.
EZD-PEVC3108
After-sales Service
2 Years Warranty
Type
Fast EV Charging Station
Certification
CE, ISO, TUV
Warranty
24 Months
Transport Package
Carton in Wooden Box
Specification
1000*920*2100mm
Trademark
Soonplus
Origin
China
HS Code
8504409999
Production Capacity
10000 Piece/Month
Product Description

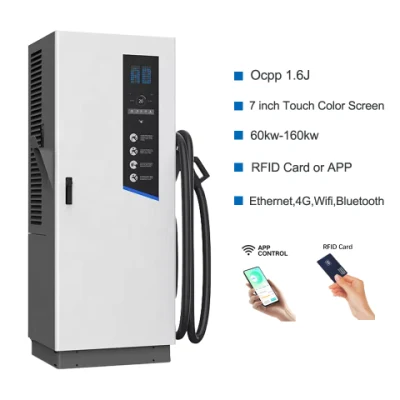

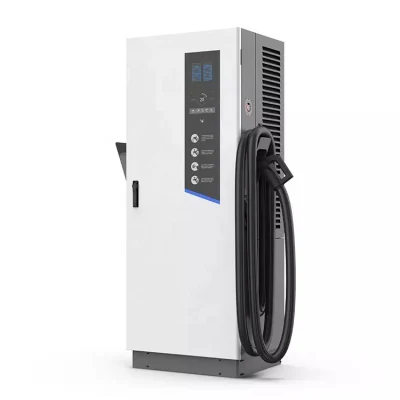

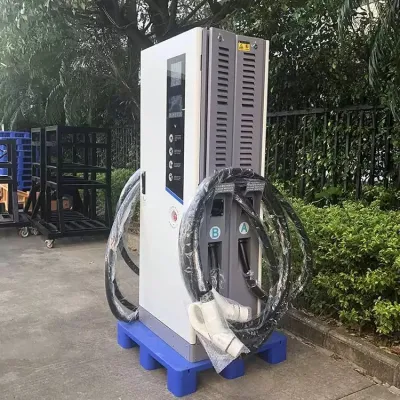

China Manufacturer Ocpp Touch Screen 60kw 80kw 100kw Ev charger Chademo Commercial Car charger DC Fast EV Charging Station
The DC EV charger is the top choice for powering battery electric vehicles (BEV) and plug-in electri cvehicles (PHEV) today. It is designed for quick charging in both public and private locations, such as retailing commercial parking spaces, fleet EV Chargers, highway rest areas, workplaces, residences, etc.
The DC EV charger has the advantage of easy installation. The ground-mounted design and pluggable power modules allow for flexible installation. The DC EV charger also features network communication capability; It can connect with remote network systems and provide drivers of electric cars with real-time information, such as the locations of EV Chargers, charging progress information and billing information.
The DC EV charger has a friendly user interface with HMI, a power supply safety system and excellent waterproof and dustproof technology to provide the best choice for outdoor.
1.Big Size LCD Screen
Straightforward user interface with 7-inch panel,which displays the real-time charging status, including time, voltage, current, power and temperature.
2. Convenient operation
Easy installation with modular design,adapt to the indoor and outdoor environments. Ingress protection upto IP54.
3. Simultaneous charging output

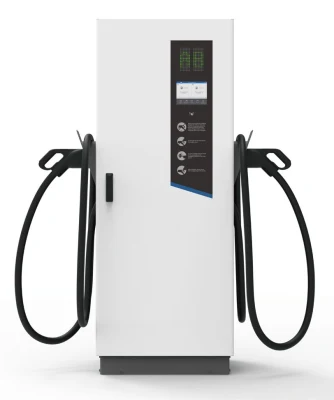

Applicable to dual output and multiple output model,smart Charging model to adjust the power loading, and Load sharing to ensure the best utilization.
4. High intelligence
Powerful information collection, transmission and communication functions, compatible with OCPP back end office,support user authentication options.
5. Easy to install and use
The installation process is simple, payment is convenient and fast, and supports mobile application software or IC card swiping. Fully compatible with all EV in the market.
| Power Suppply | 3P+N+PE |
| Rated Voltage | 400VAC±15%(50/60Hz) |
| THDi | ≤5% |
| Efficiency | ≥95% |
| Power Factor | ≥0.98 |
| Grid Frequency | 50Hz or 60Hz |

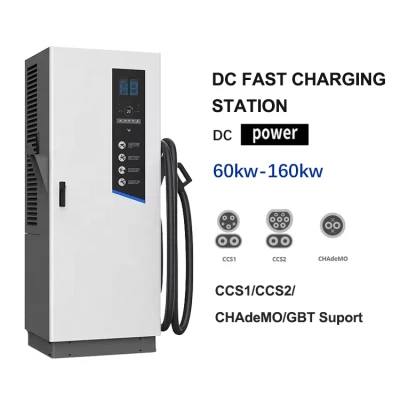

| Connector Type | CCS, CHAdeMO, GB/T |
| Output Voltage | 150-1000V DC |
| Maximum Output Current | 200A |
| Output Power Rating | 60-240kW |
| Output Voltage Accuracy | ≤0.5% |
| Output Current Accuracy | ≤±5% |
| HMI | 7-Inch touch screen |
| Charging Method | RFID Card |
| Cable Length | Cellular modem:GSM/4G (optional)LAN:10/100 Base-T Ethernet |
| Communication Protocol | OCPP 1.6J |
| Operating Noise Level | ≤60dBA |
| Ingress Protection(IP/IK rating) | IP54/IK08 |
| Power Meter | Accuracy Class 1 energy meter |
| Enclosure | Galvanized steel |
| Product Dimension | 700 x 550 x 1800mm(W x D x H) |
| Package Dimension | 950 x 720 x 1950mm(W x D x H) |
| Protection | Over Current,Under Voltage,Over Voltage,Short Circuit,Residual Current, Surge Protection,Over Temperature,Ground Protection |
| Certification Standard | EN/IEC 61851-1,EN/IEC 61851-23,EN/IEC 61851-24,EN/IEC62196-1,EN/IEC62196-3 |
| Operating Temperature | -35ºC to +50ºC |
| Storage Temperature | -40°C to +75°C |
| Maximum Installation Height | ≤2000m |
| Operating Humidity | 5%-95% RH |
| Factory Brife Introduction Shenzhen E-Zonda Energy Co., Ltd was established in 2015. We provide safe, innovative, and smart complete AC charging products for electric vehicles, including EV Charging Station,Smart EV wallbox, Portable EV Charger, EV Charging Cable, extension Cable, EV Charger Adaptor and all kinds of EV plugs, sockets, and connectors. All our products come with CE, TUV certification. The products are sold throughout the country Inside and outside with good reputation. We can provide customers with complete charging solutions and technical support with years experiences in Ev charging industry. With professional R & D team and experiences on product customization, OEM and ODM services are available for our customers. |  |
| We would like to show our honesty, top good quality, competitive prices, and superior efficiency to start business with all of you. Our goal is providing a complete solution including product design, research and developemtn,and service for our customers to achieve a win-win situation for us as well as our clients. Welcome contact from customers all over the world. | |
Q What is your sample policy?A We can supply the sample within 7 days, but customer need to pay the sample cost and the courier cost.
Q Can I put my brand logo on charger?
A Yes, we support OEM and ODM production. We can put your trademark on the ev charger box and plug with MOQ quantity of 50pcs.
Q Does your products have quality certification? How long is the warranty time?
A We have a very strict quality controlling system which promises the goods we produced are always of the best quality. Our EV charging products passes with CE&TUV certifications. All products FREE warranty within 24 month.
Q How can we guarantee quality?
A We always conduct a pre-production sample before mass production and 100% Inspection before shipment;
Q Can the EV charger charge all EVs on the road?
A Yes, all models of our EV Charger work with all Electric Vehicles. Tesla vehicles need the use of a J1772 to Tesla adapter to work with our EV chargers.
Q How about your Lead time?
A Generally, it will takes 3 to 25 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q What about the delivery?
A We can delivery by express,by Air Cargo and by sea
Q Does the EV Charger need any APPs or internet?
A Some models are set be to standalone type which use RFID card to start or plug and play mode . Some models are Wi-Fi connected and can work with App and any OCPP 1.6j application. Details please feel free to ask.
Q What is an OCPP application?
A The Open Charge Point Protocol (OCPP) is an open-source communication protocol for networked electric vehicle chargers. The Smart charger is able to work with any charger management software that uses these protocols to direct Smart Charging.
