Basic Info.
Model NO.
BS-BC-11KW
After-sales Service
1 Year Warranty
Type
Fast EV Charging Station
Certification
CE, TUV, RoHS
Warranty
12 Months
Transport Package
1 Carton Inner Box
Specification
IEC 62196-2
Trademark
BESEN
Origin
China
HS Code
8504409999
Production Capacity
3000

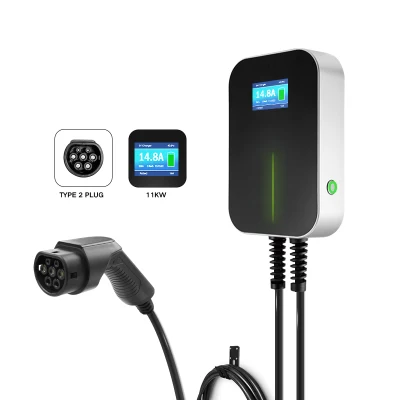

Product Description
| Electrical Specification | |
| Input Voltage/Output voltage | 100V /380V (Three Phase) |
| Input frequency | 47~63Hz |
| Max. output power | 11kW (Three Phase) |
| Max. output current | 16A 3 Phase |
| Charging interface type | IEC 62196-2 |
| Function and Accessory | |
| Ethernet/WIFI/4G/Bluetooth | No |
| LCD | 3.5-inch color display |
| RCD | Type A / Type A+ 6mA DC |
| LED Indicator light | Yes |
| Intelligent power adjustment | Yes |
| RFID | Opt |
| APP | Opt |
| Working Environment | |
| Protection degree | IP 66 |
| Environment temperature | -40ºC ~ +80ºC |
| Relative humidity | 0-95% non-condensing |
| Maximum altitude | <2000m |
| Cooling | Natural air cooling |
| Standby power consumption | <8W |
| Certificate | |
| CE | FCC |
| ROHS | CCC |
| CSA | IK 10 |
| IP 66 | |
