Basic Info.
Model NO.
CLX-AC-7KW
Charge Method
Normal Charge
Mtbf
100, 000 Hours
Cooling Method
Forced Air Cooling
Protection Level
Level IP55
Working Elevation
<2000m
Working Humidity
5%~95% Non-Condensing Cream
Type
Fast EV Charging Station
Certification
CE, ISO, TUV
Warranty
24 Months
Transport Package
Carton
Specification
292*126*417
Trademark
KAYAL
Origin
China
HS Code
8504409999
Production Capacity
50000pieces/Month
Packaging & Delivery
Package Size
45.00cm * 65.00cm * 35.00cm
Package Gross Weight
20.000kg
Product Description
Products Description

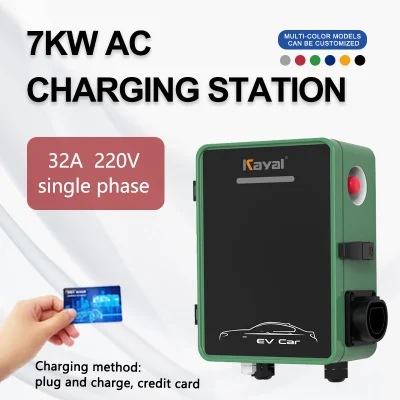

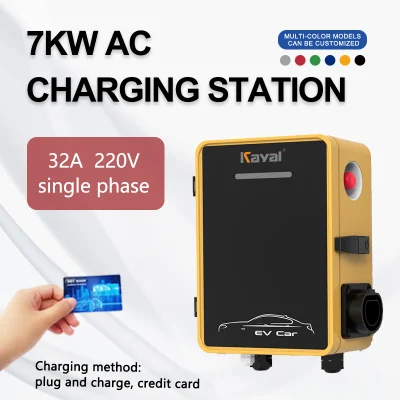

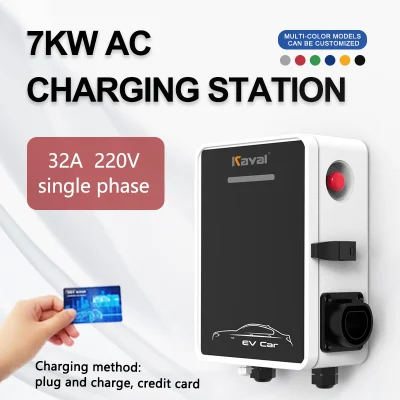

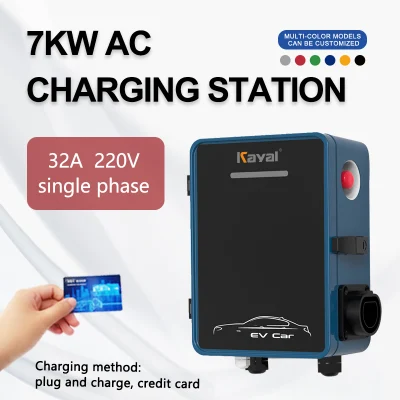

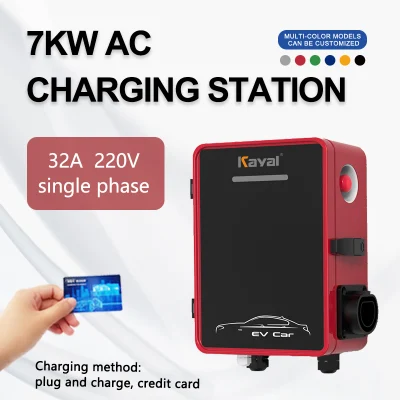

| product name | AC EV Charging Station |
| model | CLX-AC-7KW |
| Dimensions (mm) | 340*240*110 |
| Human-computer interaction | 4.3 inch touch screen |
| AC power | 220Vac±20% ; 50Hz±10% ; L+N+PE |
| Rated current | 32A |
| Output Power | 7KW |
| working environment | Altitude: ≤2000m; Temperature: -20ºC~+50ºC; |
| charging method | Swipe card, scan code |
| Networking method | 2G, 4G, Wifi, applet |
| Operating model | Offline no billing, offline billing, online billing |
| Protective function | Overvoltage, undervoltage, overcurrent, short circuit, surge, leakage, etc. |
| Charging port | GB/T 20234.2-2015 |
| Charging cable length | Standard 3.5 meters (optional) |
| Protection level | Ip54 |

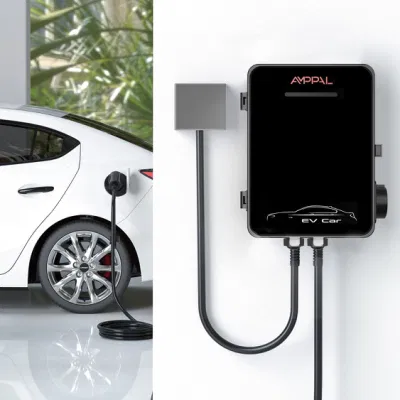

| Installation method | Wall-mounted or floor-mounted installation, corresponding accessories are required |
Hot Products
Certifications
FAQ
| What is your terms of payment? |
| A: Alibaba online fast payment, T/T |
| Do you test all your chargers before shipping? |
| A: All major components are tested before assembly and each charger is fully tested before shipped |
| Can I order some samples? How long? |
| A: Yes, and usually 7-10 days to production and 7-10 days to express. |
| How long to fully charge a car? |
| A: To know how long to charge a car, you need to know the OBC(on board charger) power of the car, the car battery capacity, the charger power. The hours to fully charge a car =battery kw.h/obc or charger power the lower one. For e.g, the battery is 40kw.h, obc is 7kw, charger is 22kw, the 40/7=5.7hours. If the obc is 22kw, then 40/22=1.8hours. |
| Are you Trading Company or manufacturer? |
| A: We are professional EV charger manufacturer. |
