Basic Info.
Model NO.
M3P132U
Charging Standards
Saej1772(Type1)
Electrical Enclosure
Type4
External Communication
LAN(Rj-45) and Wi-Fi
Ocpp Protocol(Optional)
Ocpp 1.6j
Charging Control
Plug and Play or RFID Card
Cable Length
5m or Customized
Design Style
Home Use(Residential), Commercial
Earth Leakage Protection
Ccid 20
After-sales Service
Remotly After Sales Service
Type
Slow EV Charging Station
Certification
FCC
Warranty
12 Months
Transport Package
Cartons/PCS 394*344*260mm
Specification
310*220*95; <7kg
Trademark
weeyu
Origin
China
HS Code
8504409999
Production Capacity
10000PCS/Month

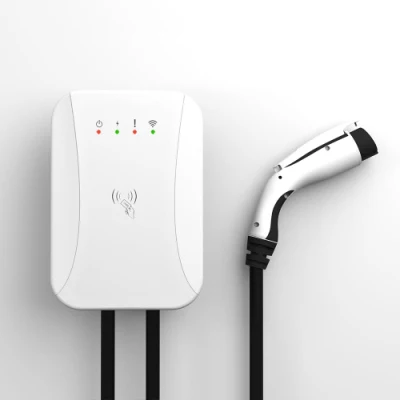

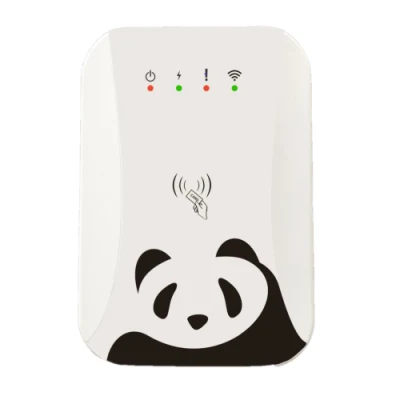

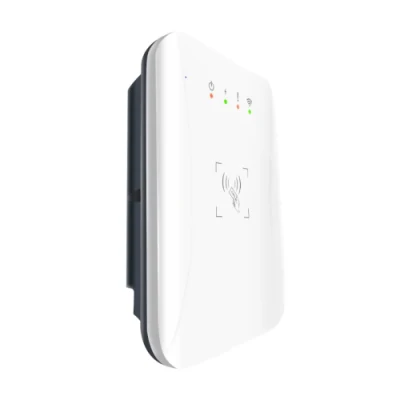

Product Description
| Power Specification | ||||
| AC Power Input Rating | SAE Standard | IEC Standard | ||
| AC Level 2 | 1-Phase | |||
| 240V | 220V ± 15% | |||
| AC Power Output Rating | 3.5kW/16A | 3.5kW/16A | ||
| 7kW/32A | 7kW/32A | |||
| 10kW/40A | N/A | |||
| Rated Frequency | 50/60Hz | 50/60Hz | ||

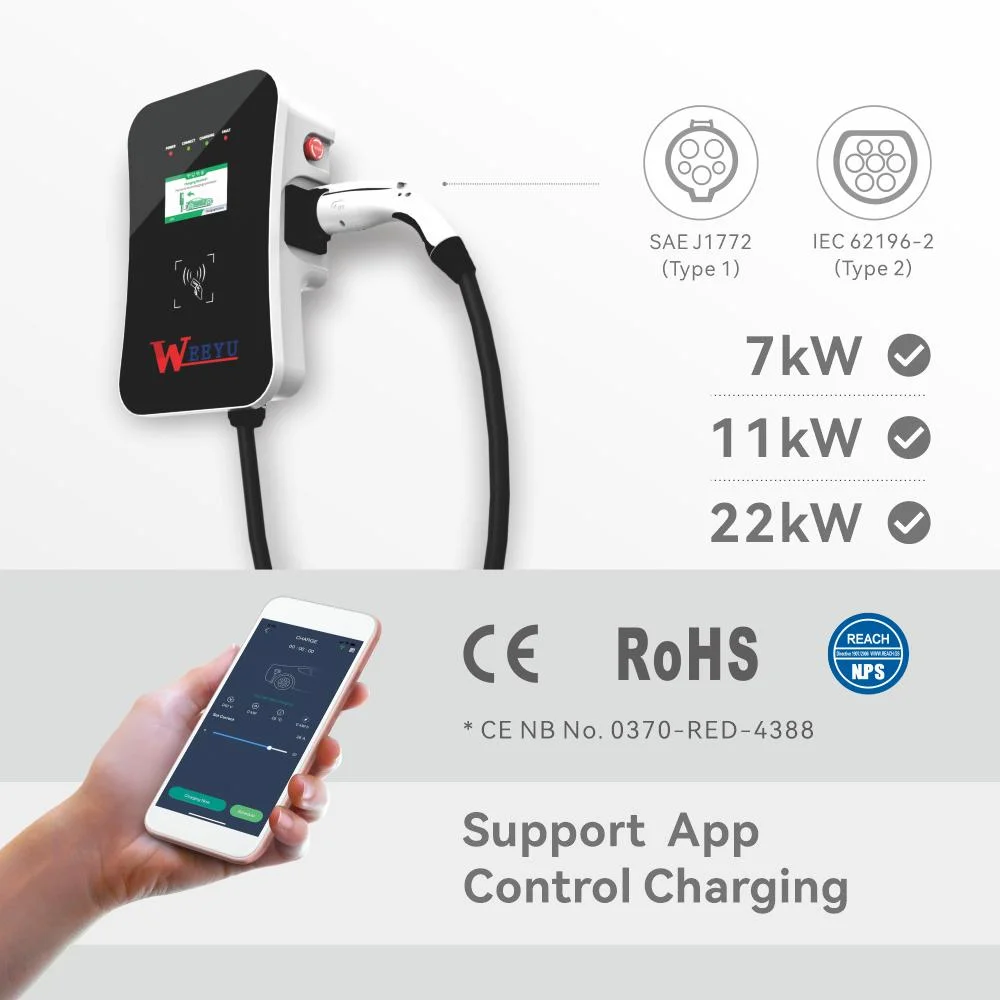

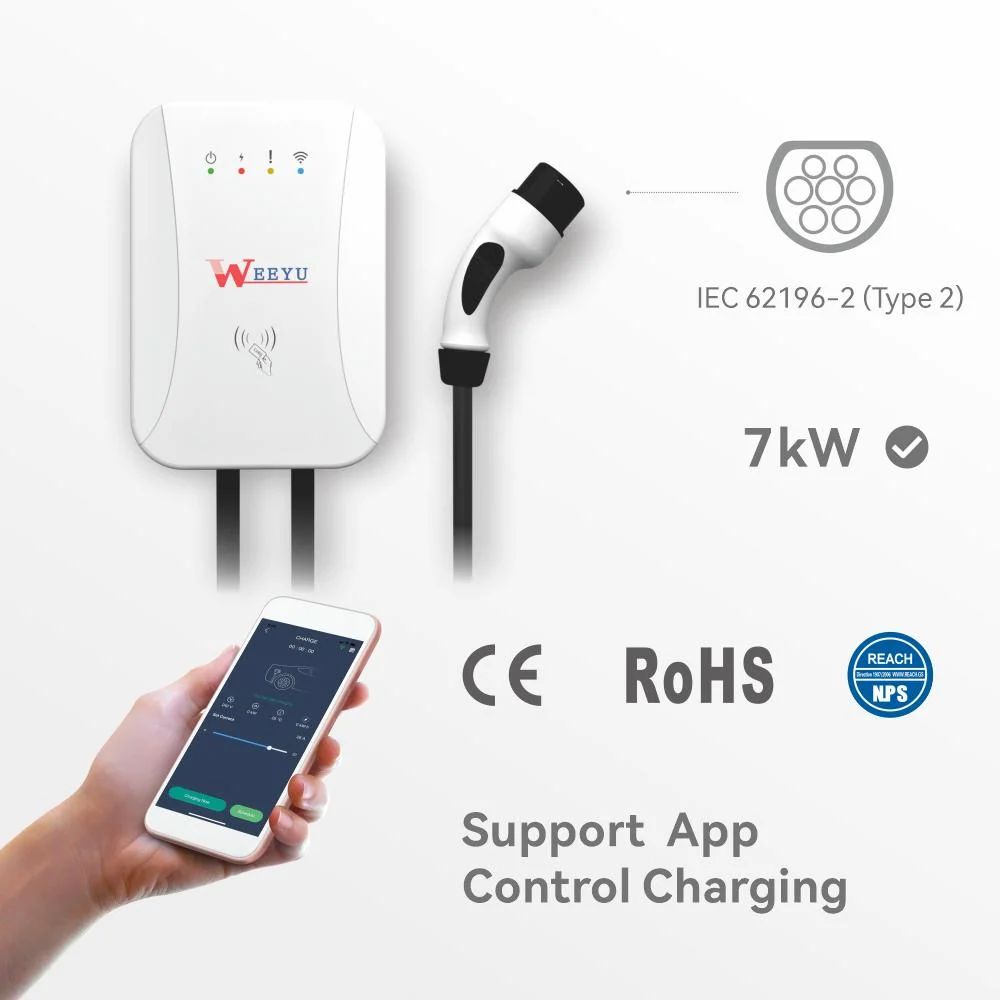

| Connector Type | SAE J1772 (Type 1) | IEC 62196-2 (Type 2) | ||
| User Interface & Control | ||||
| Charging Control | Plug and Play, RFID Card or App | |||

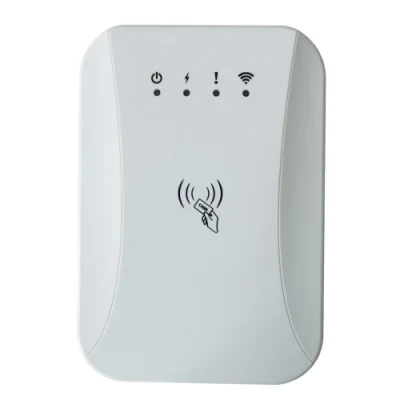

| Indicators | 4 LED indicators-Power/Connect/Charging/Fault | |||
| External Communication | LAN (RJ-45) and Wi-Fi | |||
| OCPP Protocol (Optional) | 1.6 or 2.0.1 | |||
| Environmental | ||||
| Storage Temperature | -40 to 75ºC (-40 to 167ºF) ambient | |||
| Operating Temperature | -30 to 55ºC (-22 to 131ºF) ambient | |||
| Operating Humidity | Up to 95% non-condensing | |||
| Altitude | ≤2000m | |||
| Protection | ||||
| Protection Ratings | IP 65 | RCD | Type A / Type B | |
| Over Voltage Protection | Yes | Under Voltage Protection | Yes | |
| Over Load Protection | Yes | Short Circuit Protection | Yes | |
| Earth Leakage Protection | Yes | Ground Protection | Yes | |
| Over-temp Protection | Yes | Surge Protection | Yes | |
| Wallbox Mechanical | ||||
| Dimension (H x W x D, mm) | 310 x 220 x 95 | |||
| Weight | <7kg | |||

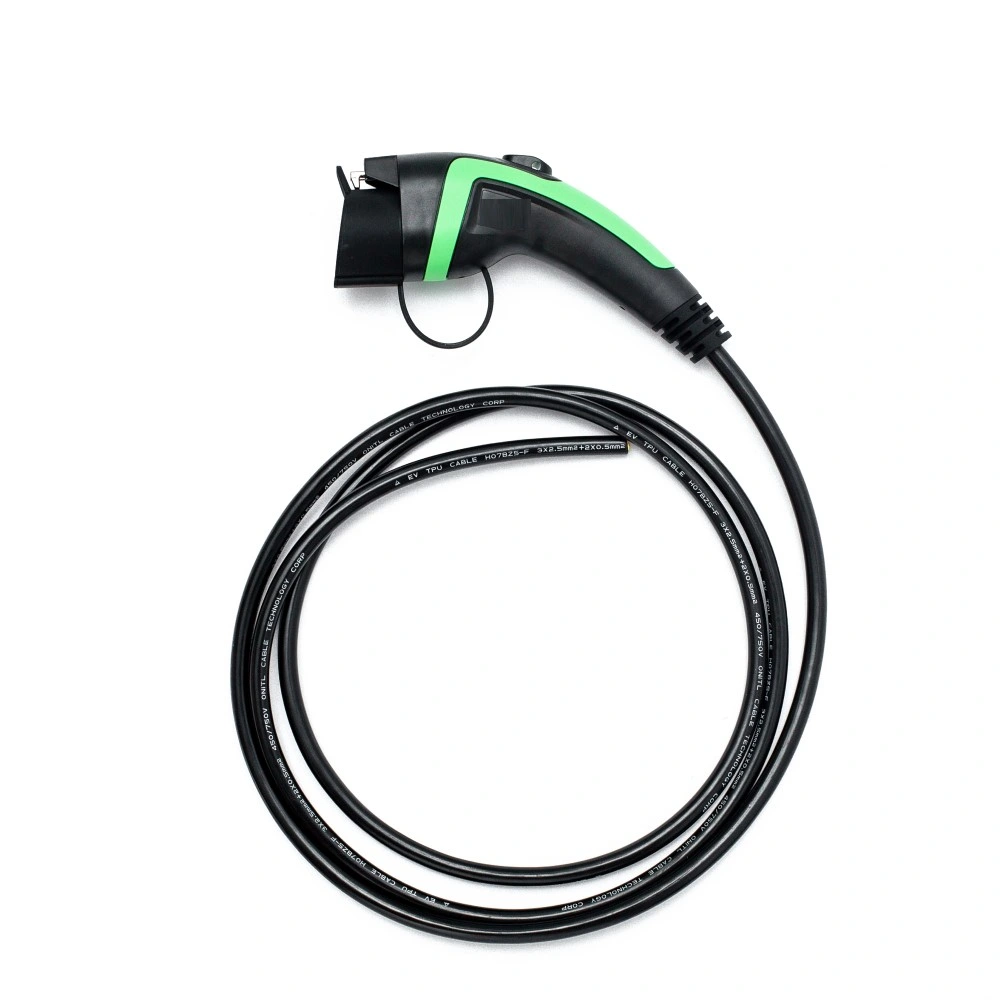

| Charging Cable Length | 5m or Customize Length | |||
| Enclosure Material | PC+ASA | |||

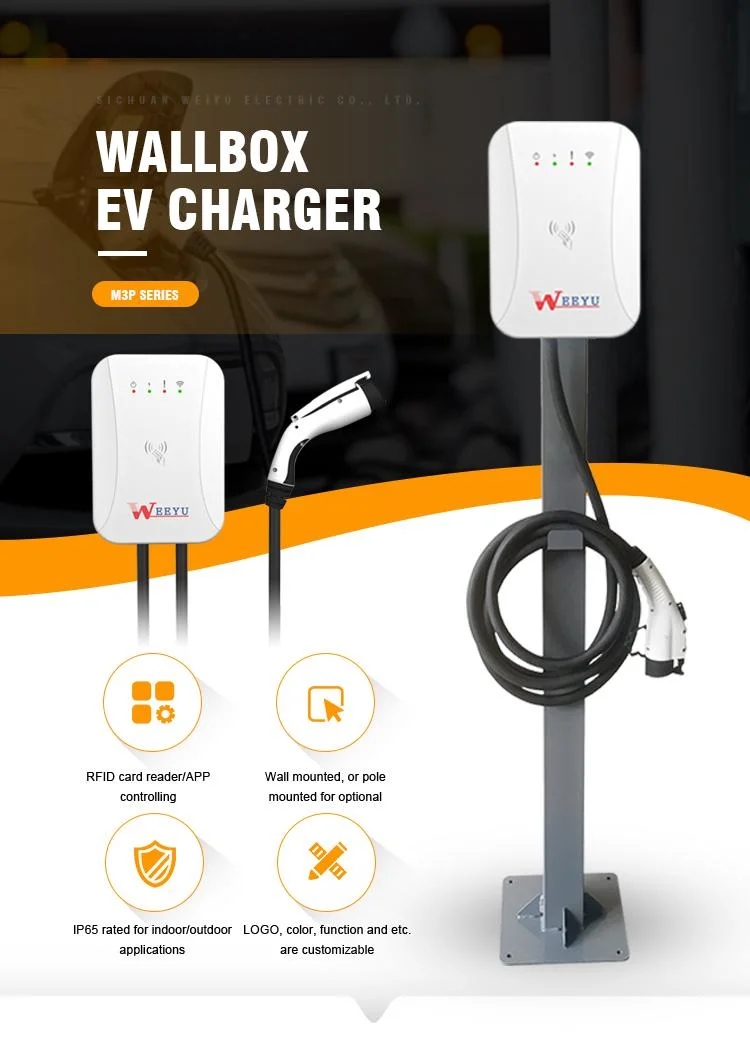

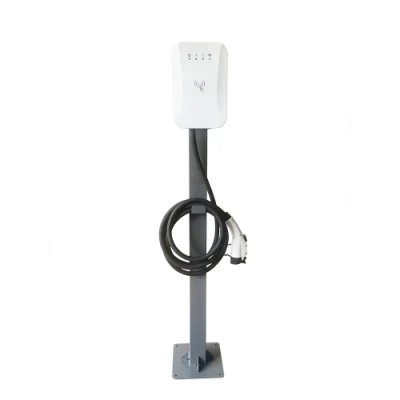

| Mounting Pole Mechanical (Optional) | ||||
| Dimension (H x W x D, mm) | 1400 x 200 x 100 | |||
| Weight | <8kg | |||
| Enclosure Material | Metal | |||

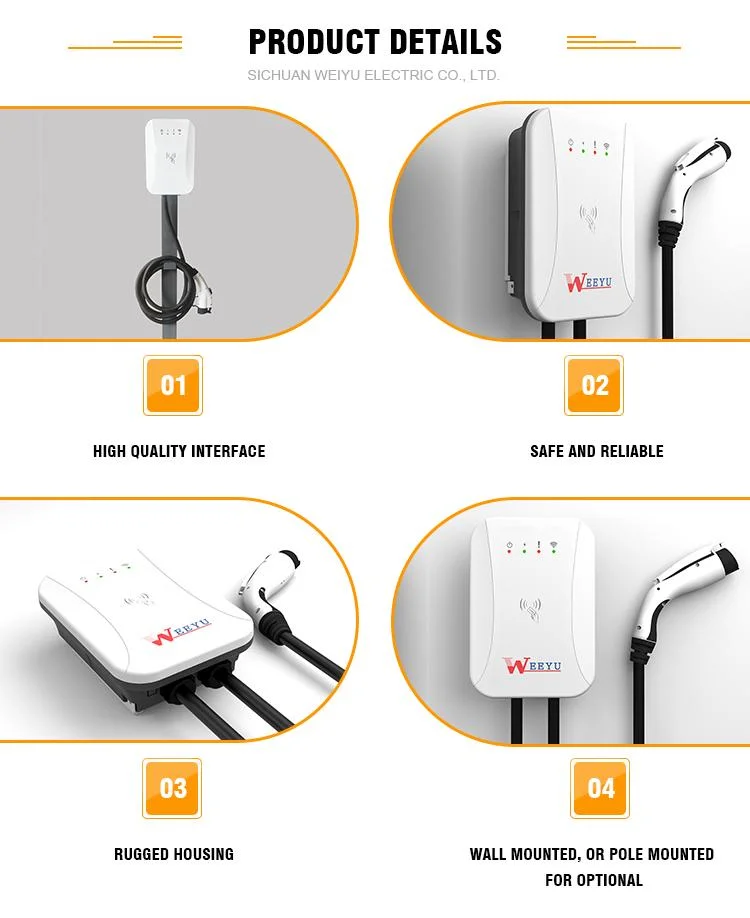

Wi-Fi / LAN/ RFID Easy Installation IP 65
Compact Design High Compatibility Logo Customizable
WEEYU is a manufacturer specializing in EV Charging products include EV charging stations, EV cables and EV connectors. Meanwhile, we also offer product customization service upon the request in order to meet the local market preferences and needs. We strive to provide constantly updated products, perfect project solutions and efficient after-sales service to ensure our customers rank top in the market. We are committed to become the most professional EV charging equipment manufacturer in China and will keep working hard for it. Our factory has sufficient capacity to accommodate large scale production of EVSE.
If you can't find the exact product you need in the picture, welcome to contact us at any time, we will reply you as soon as
possible.
Sichuan weiyu wallbox charger advantages:
1. Factory with dedicated sales and R&D team
2. Offer OEM and ODM Service
3. UL FCC
2. Offer OEM and ODM Service
3. UL FCC
FAQ
| Q1: What is your terms of payment? |
| A: We will recommend our customer to use different terms of payment based on difference in quantity of order. |
| Q2: Do you test all your goods before delivery? |
| A: Yes, we have 100% test before delivery. |
| Q3:Can you produce according to the samples? |
| A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures. |
| Q4: What is your terms of packing? |
| A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters. |
| Q6: Are you Trading Company or manufacturer? |
| A: We are professional EV charger manufacturer. |
