Basic Info.
Model NO.
EV-G AC7K-S
Start Method
Plug & Charge/RFID Card+APP
RCD
30mA Type a + DC6ma RCD
Input/ Output Voltage
3 Phase
Output Current Range
Max 32
Charging Standards
IEC 62196-2 (Type 2)
Communication
LAN/4G(Optional)+WiFi (Optional)
Input Voltage Range
110-240V
Protection Degree
IP55
OEM/ODM
Support
External Communication
RS485
Ocpp Protocol
Ocpp 1.6
Transport Package
Carton Box
Specification
800*600*280mm
Trademark
Hyliess
Origin
Hunan, China
HS Code
8504409999
Production Capacity
50000pieces/Month
Product Description

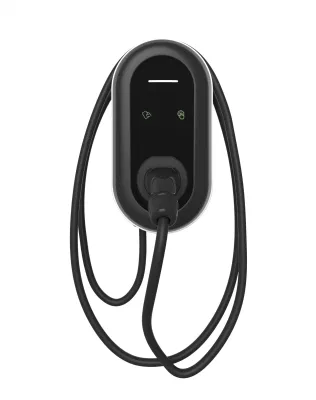

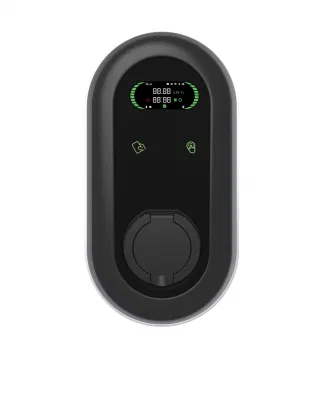

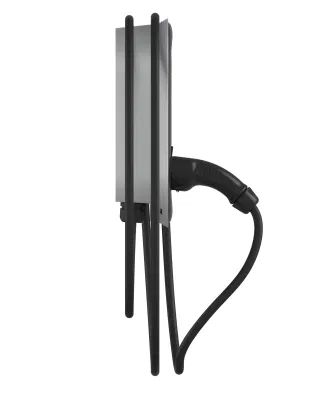

Wall installation ev charging stations contractors for vehicle cars
Products Features
Detailed information
Company profile
FAQ
Q: How long does it take to fully charge a car?
A: It varies on different models. Take the BMW i4 eDrive40 for example, the battery capacity is 83.9kWh and the on-board charger is 11kW. If you install an 11kW/7kW charger at home, it takes 83.9kWh/11kW=7.6 hours to fully charge the vehicle.
Q: Can I set the maximum charging current?
A: Yes the charging current could be set from the mobile APP.
Q: Can I charge my car when the electricity price is low?
A: Yes, users can set the charging time through a mobile APP.
Q: I would like to install a 7kW charger. The total input of my home is 11kW, while I have other home appliances which could reach 8kW when all of them are working. Do you have a solution to my situation?
A: Yes, we provide a dynamic load balance function. It will measure the total input of your home, the total consumption of your other appliances, then the rest power will be distributed to EV charging. So that the charger can always charge at its maximum allowed power.
Q: How to connect my charger to the mobile APP?
A: Please check the video.
Q: Can I charge my EV when I am not at home?
A: Yes, when you leave the house, please connect the charger to the EV and set up the charging time through the mobile APP. The charger will charge the EV automatically at the set time.
Q: What's the product warranty policy?
A: All the goods purchased from our company can enjoy two years free warranty. In case of any failure, we provide a free replacement charger.
Q: What's your delivery time?
A:7 days for samples(no logo); 3~4 weeks for batch order(customized logo).
Q: How to install the charger?
A: The charger can be installed against the wall, or against a pole.
| Power Specification | |
| Model Number | EV-G AC7K-S/C |
| AC Power Input Rating | 230V AC(1-phase) |
| Rated Frequency | 50/60Hz |
| Output Current | 32A |
| Output Power | 7kW |
| Connector Type | 5m charge cable |
| User Interface & Control | |
| Charging Control | plug and charge, start/stop touch button, RFID card or mobile APP. |
| LCD Display | 3.8'' (optional) |
| Internet Connection | Wi-Fi (LAN/4G optional) |
| External Communication | RS485 |
| OCPP Protocol (Optional) | OCPP 1.6 |
| Environmental | |
| Storage Temperature | -40 to 75ºC ambient |
| Operating Temperature | -30 to 55ºC ambient |
| Operating Humidity | up to 95% non-condensing |
| Altitude | ≤2000m |
| Cooling Method | natural cooling |
| Protection | |
| IP Code | IP55 |
| Leakage Protection | type B (AC 30mA+DC 6mA) |
| Electrical Protection | over/under voltage protection, over load protection, short circuit protection, earth leakage protection |
Products Features
| Always connected & Intelligent | Designed to be always connected and intelligent, our electric car wall charger scales easily with Hub-Satellite technology and consumes power efficiently with load balancing. |
| Flexible Authentication | Our business AC wallbox charger supports multiple starting modes, including RFID card, mobile APP, plug & charge, which can give you the ultimate convenience. |
| Built-in Electrical Protections | Built-in protections prevent overcurrent and AC/DC leakage, which can offer users a super safe charging environment. 22kW EV chargers or 11kW EV chargers are available at Hyliess |
| Durability & Reliability | ith its weatherproof and impact-proof design, this electric car wall charger can withstand various elements and be suitable for indoor and outdoor use. |
| LCD Display Screen & Easy-to-use Interface | The easy-to-use interface can make your charging experience much easier. |
| Wi-Fi, Ethernet, and 4G | With built-in Wi-Fi, Ethernet, and 4G LTE, our AC business wallbox is always connected, so you can track and manage your charging stations, receive remote automatic firmware updates |
| AC 30mA+DC 6mA RCD Inside | Provide a more comprehensive detection capability for various residual fault currents. |
| IP55 Protection | Better protect the product integrity, produce a longer charger lifespan. |
| Remote schedule the charging | With WiFi connection and mobile APP, you can schedule the charging remotely. |
Detailed information
Company profile
Hunan Hyliess New Energy Technology Co., Ltd.
+ Energy storage products and hydrogen energy products.
+ 8 Years of experience
+ Residential solar energy storage system
Commercial use solar energy on/off grid system solution
Industrial solar energy storage on/off grid system solution
Micro-grid off-grid system solution
+ A R&D team with more than 70 specialists.
+ 38 patents in lithium battery sector and hydrogen energy sector.
+ 2 factories and more than 100,000 m2 meters factory area
+ 5 GWh Energy storage products' annual output value.
+ Energy storage products and hydrogen energy products.
+ 8 Years of experience
+ Residential solar energy storage system
Commercial use solar energy on/off grid system solution
Industrial solar energy storage on/off grid system solution
Micro-grid off-grid system solution
+ A R&D team with more than 70 specialists.
+ 38 patents in lithium battery sector and hydrogen energy sector.
+ 2 factories and more than 100,000 m2 meters factory area
+ 5 GWh Energy storage products' annual output value.
