Basic Info.
Model NO.
DC EV Charger
Charging Socket
Chademo, CCS
Application
EV Car
EV Connector
GB/T
Installtion
Handy No Need Any Install
Output Plug
Chademo Charger
Output Voltage
500V 750V 1000V
Output Current
0-120A
LCD Screen
4.3inch
Used for
All Brand Electric Cars
After-Sales Service
Available
Type
Fast EV Charging Station
Certification
CE
Warranty
12 Months
Transport Package
Wooden
Specification
762× 420× 802mm
Trademark
NASN
Origin
China
HS Code
8504409992
Product Description
30KW Portable EV Charger
20KW Portable DC Fast Charger is meant to quickly and simply charge electric vehicles, including the one equipped with high-voltage battery systems. The portable DC fast charger series' performance makes it very suitable for personal and little fleets. Modern design, friendly UI and multi standard compatible, this DC fast unit can support plug hot-swapping technology, to satisfy the charging needs of vehicles with different standards.
Features:
√ Mobile Charger-Movable type, can take it along with on ev travel road. And convenience at many usage sites as its wheels.
√ Multi Standard - With plug and play type ev connector, to meet all possible electric vehicles. CHAdeMo, CCS Combo 1, CCS Combo 2 and GB/T for your option. DC output cable can be customized based on request.
√ DC Fast Charge Speed-Fast charger provide great convenience for modern people's fast-paced life. People can fill up electric cars in a short time while drinking coffee and shopping.
√ Rated output power - This portable charger with input voltage of 380V, voice navigation, easy to use, rated output power. 30KW and 60KW for your option.
Applications:
For personal use, home use, for ev fleet, ev bus, electric heavy truck, light vehicle and charger sharing,
Datasheet:
| Model | 15KW | |
| AC Input | Input Rating | 285-475V, 380V(TYPE) |
| AC Input Connection | 3P + N +PE, Wye connection | |
| Max. Input Current | 25A | |
| Frequency | 50 /60 Hz | |
| Power Factor | >0.99@full load | |
| Efficiency | 95% | |
| DC Out put | Output Voltage Range | 200-750Vdc |
| Max, Output Power | 15KW | |
| Max. Output Current | 37A | |
| User Interface | TFT-LCD Touch Panel | No |
| Push Buttons | No | |
| Interface | USB | |
| Packing | Dimension | 762×420×802mm |
| Weight | 40KG | |
| Environmental | Operating Temperature | -40~85ºC,25ºC(TYPE) |
| Humidity | 5%-90% RH, non-condens,ng | |
| Altitude | 2000m | |
| IP Level | IP43 | |
| Mechanical | Cable Length | 3M (CHAdeMO) ,3M (CCS), 3M(GB/T) Customized acceptable |
| Regulation | EN61851-1 | |
| Regulation | Certification | CE , ROHS |
| Charging protocol | CHAdeMO 2.0 / DIN 70121/ISD1S118/IEC618Sl-23,IEC618Sl-24 | |
Other Popular
PORTABLE EV CHARGER
LOW VOLTAGE 40-100Vdc EV CHARGER
SOLAR EV CHARGING STATION
GRID FREE EV BATTERY STORAGE CHAGER SYSTEM
WALL MOUNTED EV BOX
HIGH POWER PUBLIC COMMERCIAL EV CHARGING STATION
Roadside Emergency EV Charger power bank

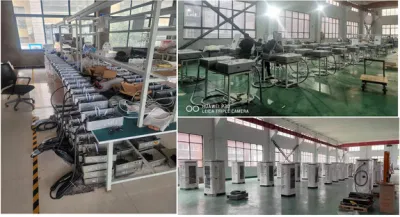

Factory Details
