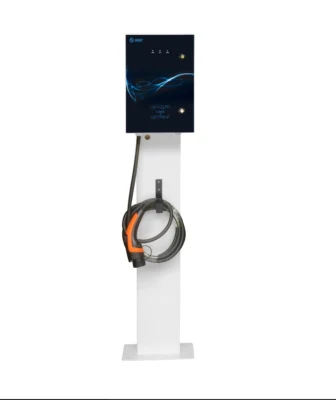

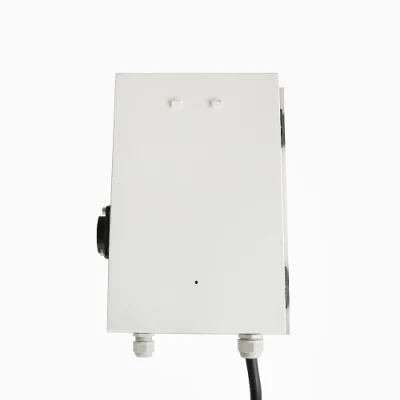

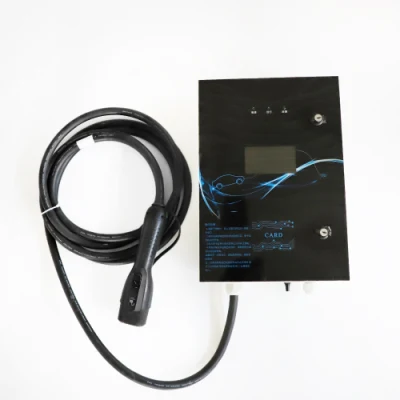

Manufacturer Supply 7kw Ocpp Single Phase AC EV Charger

Get the Manufacturer Supply 7kw Ocpp Single Phase AC EV Charger from our factory. High-quality, reliable charging for electric vehicles. Order now!
Request a Quote

PRODUCTS DETAILS

Basic Info.

Specification
550*450*550mm
Trademark
SGC
Origin
Yangzhou, Jiangsu, China
HS Code
8504409999
Production Capacity
20000 Pieces/Year

Product Description

Product description
Using the intelligent controller of charging pile testing, control and protection, which has run condition monitoring, fault monitoring, gauging the billing charge, the charging process function of remote control;
Humanization operation: supporting mobile payment methods;
Reliability: the waterproof and dustproof grade reaches IP54.
Safety and stability: with lightning protection, overload, short circuit and leakage protection;
Strong applicability: it has been successfully charged for most models;
Warranty: 12 months;
Application: home charge, public charge;
Supply Ability: 20000 Unit/Units per Year.



Manufacturer Supply 7kw Ocpp Single Phase AC EV Charger
Manufacturer Supply 7kw Ocpp Single Phase AC EV Charger
Manufacturer Supply 7kw Ocpp Single Phase AC EV Charger
Manufacturer Supply 7kw Ocpp Single Phase AC EV Charger
Manufacturer Supply 7kw Ocpp Single Phase AC EV Charger
Manufacturer Supply 7kw Ocpp Single Phase AC EV Charger

Product Parameters
Power input Input rating AC110-230V±15%  50-60Hz
Power output Phase/Wire 1-phase/L, N, PE
Output voltage AC110-230V
Output current 0-32A
Current THD ≤5%
Total Power 7kw
Protection Protection Over current, Under voltage, Over voltage, Residual current, Surge protection, Short circuit, Over temperature, Ground fault
User Interface & Control Display 4.3" LED screen, The led light
Support language English, Chinese
Push buttons Emergency stop button
Charge options Charge options to be provided upon request, charge by duration, charge by energy

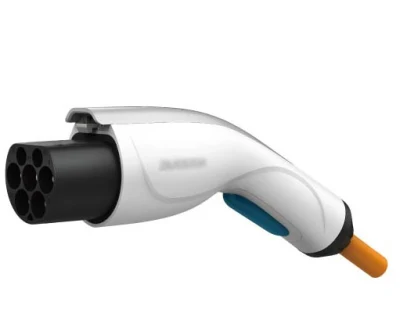

Charging interface GB/T
User Authentication ISO14443 Type A/B RFID for user authentication
Communication Network interface Ethernet(standard); Wi-Fi, 4G( optional)
Environmental Operating Temperature -30ºC to +55ºC
Storage Temperature -40ºC to +70ºC
Humidity <95% relative humidity, non-condensing
Altitude ≤6000 feet(2000m)
Mechanical Ingress Protection IP54
Charging Cable Length 5m (optional)
Dimension (H*L*W) 286*405*121mm


Company profile
SGC focus on the development and manufacturing of EV charger and charging operating platform with wide range of products, which covers AC & DC chargers from 7KW to 300KW, etc. SGC has core development capability of intelligent control, the internet of things and so on.
SGC has been specialized in experience accumulation of technical development of EV charging device and charging operation. The core strength of R&D department is composed of a group of high technical personnel with more than 10 years of practical design working experience in the field of power battery charging, the technical staff accounting for over 40% of total employees of the company. Part of core technical staff have participated in discussion and formulation of relevant charging national standard, leading the product development working of  Shanghai Expo charging station, Guangzhou Asian Games charging station, Shenzhen Universiade charging station.
With the excellent quality of products and excellent service, SGC has sold EV charger to many regions, and operate a lot of mature charging stations. SGC is also a strategic partner of many well-known car companies such as BYD, Yutong, JAC, King-Long etc.
Manufacturer Supply 7kw Ocpp Single Phase AC EV Charger
Manufacturer Supply 7kw Ocpp Single Phase AC EV Charger
FAQ

Q1. What is your term of packing?
A: Generally, we pack our goods in brown carton
.
If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.


Q2. What is your term of payment?
A: T/T 30% as deposit, and 70% before delivery.
We'll show you the photos of the products and packages before you pay the balance.


Q3.  How about your delivery time?
A: Generally, it will take 7 to 25 days after receiving your advance payment.
The specific delivery time depends on the items and the quantity of your order.


Q4. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings.
We can build the molds and fixtures.


Q5. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.

Q6. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.

Q7: How do you make our business long-term and good relationship?
A: 1. We keep good quality and competitive price to ensure our customers benefit;
A: 2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
