Basic Info.
Rated Output Power
60kw/120kw/180kw/240kw, Upgradeable 320kw
Start Method
Plug and Play, RFID, APP
Installation Method
Mode 3 Floor-Standing Installation
Cable Length
5m 7.5m(Customizable)
Ocpp
Ocpp 1.6j
Electric Protection Level
Type 3r
Input Frequency Range
50/60Hz
Certificate
cULus, FCC/IC, Energy Star, CE, ETL, CQC CCC
Input Voltage
3 Phase, 380V 400V 480V
Connector Type
CCS1+CCS1 / CCS2+CCS2 / CCS1+CCS2 / GB/T + GB/T
Business Type
DC EV Charger Factory
Customization
Logo, User Manual, Label, RFID, Language, etc
Ocpp Protocol (Optional)
1.6 or 2.0.1
Transport Package
by Carton, 1 Piece/Carton
Specification
58*104*220 mm
Trademark
INJET
Origin
Deyang, Sichuan, Province, China
HS Code
8504409999
Production Capacity
120000 Pieces/Year
Product Description
The Ampax Series DC Fast Charging Station For Commercial Business Operation
The Ampax Series DC fast charging station is suitable commercial use.
The make maintainance more flexible.

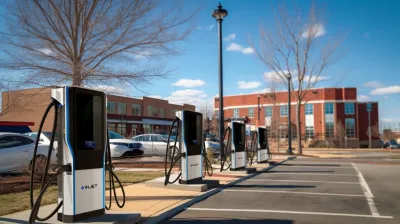

This floor-mounted DC EV Charging Station can be applicable for outdoor installation like parking lot of office building, hospital, supermarket, hotel etc.
With solar logic , OCPP, 4G and wifi, the The Ampax Series charging station can be controlled remotely.
The Smart Ampax DC Charger for Commercial Charging Solution
* Self-developed control module & Expandable design of split cabinet & Diversified scenario operation & Perfect choice for commercial use;
* Adapts to all electric vehicles, power supplies and mains;
* Powerful commercial charging solution within max current output reach 250A;
* With the smart APP, you can easily schedule your quick charging and adjust the current and power to your need;
* cULus, FCC/IC, Energy Star, CE, ETL, CQC CCC approved,, strictly comply with the health and safety standards;
* EU version & North American version are supplied;
* With OCPP 1.6J & 4G optional, Injet-Original is suitable for all parking lots in work places, super markets, apartments and communities;
* LCD touchable screen;
* Emergency stop function;
* Safe and reliable, with multiple fault protection;
* Charging module separated from control system, stable and safe performance;
* Constant power module and smart power allocation,high charging efficiency;
* Charging gun disconnected detection ensures safe charging;
* All the control system can be remotely or locally upgraded;
* LOGO Customize.
* Emergency stop function;
* Safe and reliable, with multiple fault protection;
* Charging module separated from control system, stable and safe performance;
* Constant power module and smart power allocation,high charging efficiency;
* Charging gun disconnected detection ensures safe charging;
* All the control system can be remotely or locally upgraded;
* LOGO Customize.
| General Information | ||||
| Input Voltage Rating | 400 VAC ± 10%, 50/60Hz (EU Version/GBT Version) 480 VAC ± 10%, 50/60Hz (North American Version) | |||
| Power Wiring | 3P+N+PE | |||
| DC Voltage Output | 150 ~ 1000 VDC | |||
| Connector | CCS1+CCS1 / CCS2+CCS2 / CCS1+CCS2 / GB/T +GB/T | |||
| DC Power Output Rating | 60 ~ 240 kW, Upgradeable 320 KW | |||
| The Maximum Output Current | 250 A | |||
| PF(Power Factor) | > 0.98 (Load ≥ 50% ) | |||
| THD-I | ≤ 5% (Rating voltage input, Load ≥50%) | |||
| Peak Efficency | ≥ 96% | |||
| Voltage Stabilized Accuracy | ≤ ±0.5% | |||
| Current Stabilized Accuracy | ≤ ±1% | |||
| Output Voltage Error | ± 0.5% | |||
| Output Current Error | ≤ ±1% (when output current ≥ 30A); ≤ ±0.3A (when output current < 30A) | |||
| Ripple Factor | ≤ ±0.5%(RMS) | |||
| Electric Energy Measurement Method | Measuring DC output electric energy | |||
| Connector Mechanical Operating Life | ≤ 10000 times | |||
| Certificate | cULus, FCC/IC, Energy Star, CE, ETL, CQC CCC | |||
| User Interface & Control | ||||
| Charging Control | Plug and Play, RFID Card, App | |||
| Human-Machine Interface | 10-inch LCD High-contrast touchscreen | |||
| Indicators | Yes. 4 LED indicators-Power/ Fault / Charging A / Charging B | |||
| Network Interface | 4G / Ethernet (RJ45) | |||
| Communication Protocol | OCPP 1.6J | |||
| Environmental | ||||
| Storage Temperature | -40 to 75ºC (-40 to 167ºF) ambient | |||
| Operating Temperature | -20 to 50ºC (-22 to 131ºF) ambient(derating output in 55ºC) | |||
| Operating Humidity | Up to 95% non-condensing | |||
| Altitude | ≤ 2000m | |||
| Cooling Method | Forced air cooling | |||
| Protection | Over Voltage Protection Over Load Protection Over-temp Protection Under Voltage Protection Short Circuit Protection Ground Protection Surge Protection Emergency Stop | |||
| Mechanical | ||||
| Protection Ratings | Type 3R/IP54 | |||
| Reference Dimension (W x D x H, mm) | 1040*580*2200 | |||
| Equipment Weight | ≤ 500 kg | |||
| Charging Cable Length | 5m,7.5m, or Customize Length | |||
| Enclosure Material | Metal | |||
| Color | RAL 7032 (Gray) | |||

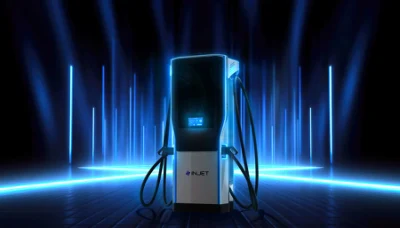

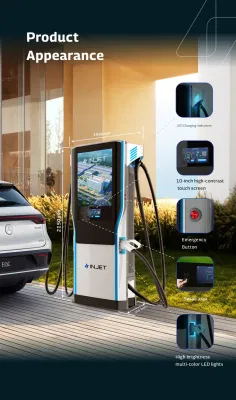

Elegant and Modern design
Metal enclosure
Double plug(CCS1+CC2)
7 inch touch screen
Easy to Operate
Plug and Charge
Swapping RFID card to charge
Controlled by App
Safety and Reliable
Full function- power sharing, DLB, Solar for optionCE,RoHS,Reach certification
Compatible with all
Indoor&Outdoor use
Residential&commercial use
Built to be compatible with all the EVs
Residential&commercial use
Built to be compatible with all the EVs
Manufacturing Technique

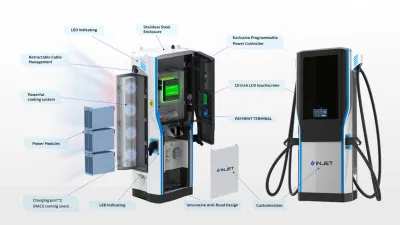

The general DC charging stations are composed of DC smart energy meter, voltage sensor transmitter, insulation detector, main controller, switching power supply, charging power supply module, relay, AC contactor, DC contactor and so on. The assembled charging stations not only has complex production and assembly process, but also has high equipment failure rate, complicated operation and maintenance and high cost. Relying on the technical R & D advantages of the parent company, after years of technical research, Injet took the lead in launching "integrated EV charging power controller" in the industry in 2019. And obtained a number of national patents, and applied for PCT international paten.
Core Technology
It integrates BMS power supply, automobile communication, charging process control, insulation detection, voltage detection, electric energy DC metering, overcurrent protection, short circuit protection and other functions in one, highly integrated, ultra-small size. Greatly simplify the composition of the charging pile, the power controller + charging gun + charging module + display and communication part can be charged, speeding up the production efficiency of the whole pile, saving human resources; sharing power scheduling, improving charging efficiency.
As the core control component of DC fast charging pile, flexible power dispatching unit is completely developed by the company, which is equipped with power dispatching unit, output over-current and over-voltage protection, data communication and other functional components.
Integrated
Integrated
Integrated power controller, integrated intelligent HMI, and built-in power module, requiring only 200 wiring boards and 100 wires, reducing by two-thirds compared to traditional DC charging stations.
RFID Card
Swiping the RFID card, you can easily start and stop the charging. One charger can allowed multiple authorized RFID cards making it safe to share with family members.
Injet APP
Injet charging app is user friendly with different languages and support Apple and Android system.You can adjust the current, reserve the charging time, and view the charging records on the APP.
Business management system
Create an account for your customer to manager their chargers.Check and set all data of chargers.
RS-485 interface
Used for load balancing, solar charging, and possible new features in the future.
OCPP 1.6J
With OCPP-1.6 communication protocol, can be connected to the your background management platform.
You can also develop your own APP based on the OCPP protocol to achieve the required functions.
Load Balancing Management
4G(Cellular network)
Solar EV Charging
External MID
