Evse 160kw Commercial Electric Vehicle Charging Pile DC EV Charging Station with 7′′ Screen

Shop the EVSE 160kW Commercial Electric Vehicle Charging Pile with 7" Screen at our factory. Fast and efficient DC EV Charging Station for all your electric vehicle needs.
Request a Quote

PRODUCTS DETAILS

  • Overview
  • Product Description
  • Product Parameters
  • Certifications
  • Why choose us
  • FAQ
Overview

Basic Info.

Model NO.
VSDC160P2
Charge Method
Quick Charge
Type
Slow EV Charging Station
Certification
ISO, CCC, TUV, RoHS, CE
Warranty
24 Months
After-Sales Service
Warrant 2 Years
Operation Voltage
150V-750V
Rated Current
250A
Frequency
60-360kw
Color
Customerized
Power Efficiency
94%
Dielectric Strength
≥2000V
Operating Temperature
-30...+80
Mechanical Life
No-Load Plug in/out
AC Power Input Rating
1phase / 3 Phase
Enclosure Material
PC V0 Flame Ratardant
Input Voltage
380V+/-15%
Internet Port + 4G
N.a
Screen Size
7”
Maximum Leakage Current
≤3.5mA
Max Power
360kw
Transport Package
Carton
Specification
700*400*1800mm
Trademark
VSCHNEL
Origin
China
HS Code
8504409999
Production Capacity
2000pieces/Month

Packaging & Delivery

Package Size
70.00cm * 40.00cm * 180.00cm
Package Gross Weight
200.000kg

Product Description

VSDC serise is one of VSCHNEL bestselling electric vehicle DC chargers qualified for CCS, CHAdeMO and GBT charging standard. The EV charging station features a perfect combination of classic stand column design with single charging connector, IP55 protection,  user-friendly 7" LCD touch screen display, multiple charging modes as well as LAN and optional LTE wireless communication. Technically, the fast EV DC charger supports a maximum DC output power capacity of 360kW, maximun DC output current 250A and a wide output voltage range from 150VDC to 750VDC.

Main Features:
·Arbitrary combination of CCS1, CCS2, CHAdeMO and GBT charging standard plug.
·IP55 design, ambient temperature from -30ºC to +80ºC .
·Smart charging and power management support.
·Wall mount, stand column, portable wheeled installation choice.
·60-360kW charging capacity,  maxium output current 250A and charging voltage from 150VDC to 750VDC.
·User friendly interface with tempered glass protective 7'' TFT capacitive touch screen LCD.
·Multiple charging modes: Auto basis, Time basis, Amount basis, Energy basis, SOC basis.
·Internal high precision AC energy meter and DC energy meter.
·WLAN and optional LTE wireless support, OTA support, RFID authorization and Mobile App payment support.
Evse 160kw Commercial Electric Vehicle Charging Pile DC EV Charging Station with 7′′ Screen

Product Description

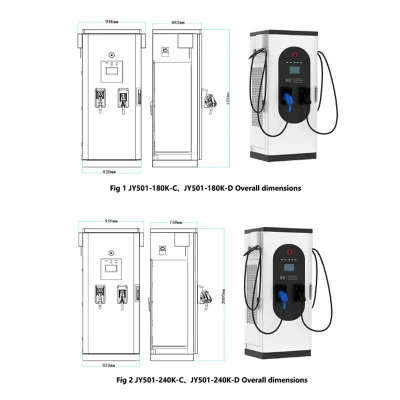

Evse 160kw Commercial Electric Vehicle Charging Pile DC EV Charging Station with 7′′ ScreenEvse 160kw Commercial Electric Vehicle Charging Pile DC EV Charging Station with 7′′ ScreenEvse 160kw Commercial Electric Vehicle Charging Pile DC EV Charging Station with 7′′ Screen



Product Parameters

Quantity of Charging 2
Input Voltage 380V+ / -15%
Output Voltage Range 150V-750V
Output Max Rated Current 250A
Max Power 360kW
Internet  Port + 4G Internet / 4G
Screen Size  7"
Dielectric Strength ≥2000V
Maximum Leakage Current ≤3.5mA
Protection Degree IP55
Working Temperature -30...+80ºC
Warranty 24 month
Power Efficiency 94%
Product Size 700x400x1800mm
Protection Function
Overvoltage Protection; L ow-voltage Protection
Overload Protection; E arth leakage Protection
Surge Protection; O ver-temperature Protection



Certifications

Evse 160kw Commercial Electric Vehicle Charging Pile DC EV Charging Station with 7′′ Screen


Why choose us

Evse 160kw Commercial Electric Vehicle Charging Pile DC EV Charging Station with 7′′ Screen
Evse 160kw Commercial Electric Vehicle Charging Pile DC EV Charging Station with 7′′ Screen

FAQ

1.Are you a manufacturer or a trading company?
Operators with independent import and export rightsproviding convenience for direct overseas business.

2.What is the transportation method?
For urgent orders and lighter goods, you can choose the following express delivery options:UPS,FedExDHL.For heavier goodsair or sea freight can be chosen.

3.How to make payment?
Wire transfer to ensure trade.

4.How much does it cost to ship to my country?
This depends on the season, and the fees vary depending on the season.

5.Can Iprint our logo/barcode/unique QR code/serial number on the product?
Of course this is our basic service.

6.Can lorder some samples for testing?
Usually, samples are free of charge. But for some special samples there may be some fees required.

7.Can you customize special shapes for my product?
Yes,OEM and ODM are our unique services.
