CCS1 CCS2 Best EV Charger Station for Cars

Looking for the best EV charger station for cars? Look no further than CCS1 CCS2! We are a factory specializing in high-quality and efficient charging solutions for electric vehicles.
Request a Quote

PRODUCTS DETAILS

  • Overview
  • Product Description
  • Product Specification
  • Detailed Photos
  • Company Profile
  • FAQ
Overview

Basic Info.

Model NO.
PEVC3106
Communication Protocol
Ocpp 1.6j
After-sales Service
24 Hours Online, Free Accessories(Warranty)
Type
Fast EV Charging Station
Certification
CCC, CE, ISO, TUV, RoHS
Warranty
12 Months
Transport Package
Wooden Box
Specification
700mm*240mm*1750mm
Trademark
Piwin
Origin
Zhuhai, Guangdong, China
HS Code
85044099

Product Description

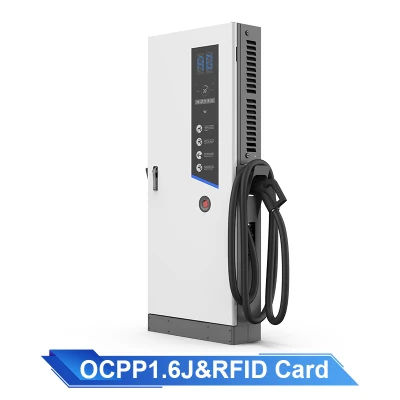

PEVC3106 40KW 60KW 80KW DC Fast EV Charger

Product Description

CCS1 CCS2 Best EV Charger Station for Cars
PEVC3106  is a basic DC Fast EV charger. It is easy to install, stable in performance, and provides complete protection function. The LCD display can show the charging status, user friendly. It supports GSM/3G/4G/Ethernet communication with party system for remote monitoring/maintain/upgrade. The charger can optionally equipment installed outdoors.

IP54, Strong and Durable: Support outdoor harsh environment,waterproof and dust-proof. Rugged shell which could resist the rolling and crash of the car.


Warranty - 24-month warranty and life-time hassle-free technical support.

Product Specification
Power Suppply
3P+N+PE
Rated Voltage
380VAC±20%(50/60Hz)
THDi
≤5%
Efficiency
≥95%
Power Factor
≥0.98
Connector Type
CCS Combo 1, CCS Combo 2, Chademo
Output Voltage
   200VDC-750VDC/200VDC-1000VDC
Maximum Output Current
100A, 150A, 200A(Max)
Output Power Rating
40KW/60KW/80KW(Max)
Output Voltage Accuracy
≤0.5%
Output Current Accuracy
≤±5%
Display
7-Inch touch screen
Charging Method
RFID Card
Backend
Cellular modem:GSM/4G  (optional)
LAN:10/100 Base-T Ethernet
Communication Protocol
OCPP 1.6J
Operating Noise Level
≤65dBA
Ingress Protection
(IP/IK rating)
IP54/IK08
Power Meter
Accuracy Class 1 energy meter
Enclosure
Galvanized steel
Product Dimension
700mm*240mm*1750mm(W x D x H)
Package Dimension
950 x 440 x 1950mm(W x D x H)
Protection
Over Current,Under Voltage,Over Voltage,Short Circuit,Residual Current, Surge Protection,Over Temperature,Ground Protection
Certification Standard
GB/T18487.1-2015,GB/T27930-2015,NB/T33001-2018,NB/T33008.1-2018
Operating Temperature
  -20°C to +50°C
Storage Temperature
-40°C to +75°C
Maximum Installation Height
≤2000m
Operating Humidity
5%-95% RH

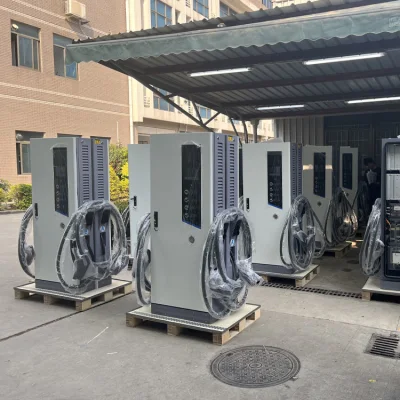

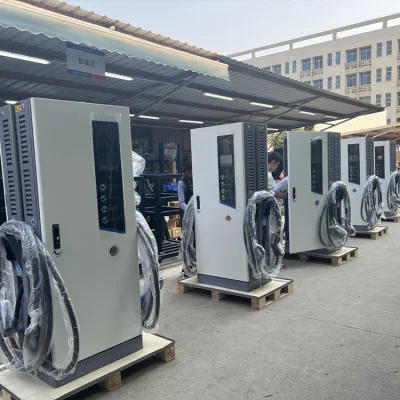

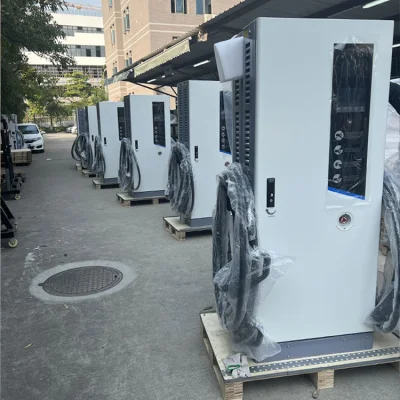

Detailed Photos

CCS1 CCS2 Best EV Charger Station for CarsCCS1 CCS2 Best EV Charger Station for CarsCCS1 CCS2 Best EV Charger Station for CarsCCS1 CCS2 Best EV Charger Station for CarsCCS1 CCS2 Best EV Charger Station for CarsCCS1 CCS2 Best EV Charger Station for CarsCCS1 CCS2 Best EV Charger Station for CarsCCS1 CCS2 Best EV Charger Station for CarsCCS1 CCS2 Best EV Charger Station for CarsCCS1 CCS2 Best EV Charger Station for Cars

Company Profile

CCS1 CCS2 Best EV Charger Station for Cars
Zhuhai Piwin New Energy Co., Ltd. is a production-oriented enterprise integrating R&D, production, sales and service of intelligent EV charger products. Our products have more than 31 core technologies, obtained over 68 patents, and had passed the international quality system certification. To be the leading enterprice in this industry. The products have passed TUV, CE, Rosh, CB, Nemko, SAA, VDE, KC, BIS, CCC and other certification, UL certification is also under negotiation.

The company has long been engaged in the R&D and production of AC and DC chargers for new energy vehicles in overseas markets, and with the capabilities of OCPP protocol docking and overseas platform deployment. The company's technology in the field of EV chargers is unique, and it has rich experience in cooperation with overseas listed companies, fortune global 500, and new energy vehicle manufacturers.

Company's product concept: "Safe, Intelligent, Green, and Environmentally friendly".

Our products have been sent to some important potential markets such as Europe, North America, Japan, South Korea, Southeast Asia, etc. Contributing to the early realization of carbon neutrality in the world.

CCS1 CCS2 Best EV Charger Station for Cars
CCS1 CCS2 Best EV Charger Station for CarsCCS1 CCS2 Best EV Charger Station for Cars

FAQ

Q1: Where is your EV charger factory address?
A: Zhuhai, Guangdong, China. Welcome to visit our factory.

Q2: Can you provide OEM/ODM service?
A: Yes. If you have customized requirements, please contact us.
We will provide specific solutions for your requirements.

Q3: Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.

Q4: What is your sample policy?
A: We can supply the sample, but the customers have to pay the sample cost and the courier cost.

Q5: Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.

If you can't find the exact product you need in the picture, welcome to contact us at any time, we will reply you as soon as possible.
