Basic Info.
Model NO.
CFAC-002
Charge Method
Normal Charge
Product Name
AC EV Charger Pile
Application
Charging Electric Car Charging
Certificate
CE Reach FCC RoHS UL
IP Grade
IP 67
Function
Energy Vehicle Charging
Advantage
1piece
Connector Type
Type1/Type2
Output Voltage
AC90V-265V / AC 380V
Output Current
Three Phase 32A
Applicable Scene
Indoor or Outdoor
After-sales Service
Remotly After Sales Service
Type
Slow EV Charging Station
Certification
CCC, CE, ISO, TUV, RoHS
Warranty
24 Months
Transport Package
Wooden Stake + Cardboard-Shell
Specification
30cm*20cm*40cm
Trademark
Champion
Origin
China
HS Code
8504401500
Production Capacity
5000PCS Monthly
Product Description

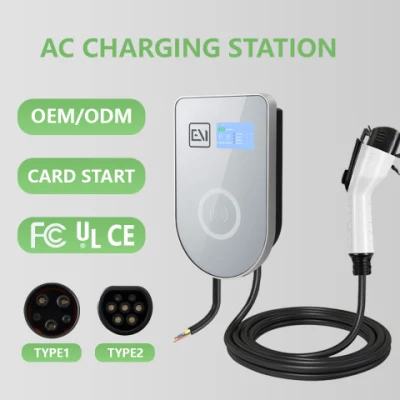

Best Quality Electric Vehicle Smart Type1/2 Car EV Charging Station 7kw 11kw 22kw 32A EV Charger
| Appearance structure | Name | AC 32A RFID Screen B* Ev Charger |
| Model | RFID to Charge | |
| Enclosure | Charging Gun PC9330 /Control Box ABS / Glass style | |
| Size | Charging Gun 240*98*70mm/Wall Box 268*228*100mm(H*W*D) | |

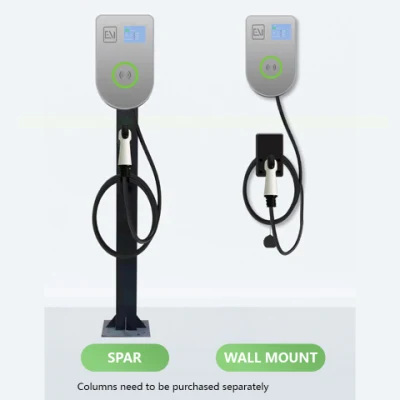

| Installation Method | Wall -Mounted/Column | |
| Install Components | Column( Option* ) | |
| Power Direction | Input(Down) & Output(Down) | |
| Net Weight | About 5KG | |

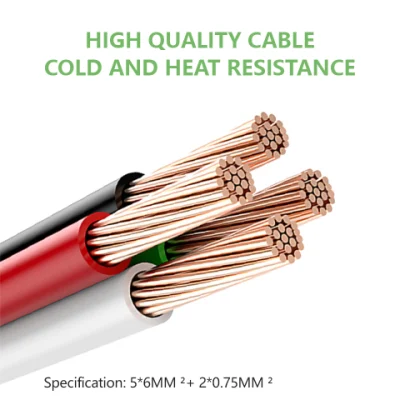

| Cable Size | 3*6mm²+0.75mm² | |
| Cable Length | 5M or Negotiation | |
| Electrical index | Input Voltage | AC90V-265V / AC 380V |
| Input Frequency | 50Hz / 60Hz | |
| Max Power | 7KW / 11KW / 22KW | |
| Output Voltage | AC90V-265V / AC 380V | |
| Output Current | Three Phase 32A | |
| Stand by Power | 3W | |
| Environment index | Applicable scene | Indoor or Outdoor |
| Work Humidity | 5%~95%(non- condensing) | |
| Work Temperature | -30ºC~+50ºC | |
| Work Altitude | <2000M | |
| Protection Class | Charging Gun IP6 7 / Control Box IP5 4 | |
| Cooling Method | Natural Cooling | |
| Standard | IEC 62196-2 | |
| Flammability rating | UL94 V0 | |
| Certificate | CE,RoHS | |
| Functional design | Interface | Display Screen,LED Indicator Light |
| Communication | OCPP 1.6 | |
| Safety design | Over Curren Protection,Residual Current Protection,Ground Protection,Surge Protection,Over /Under Voltage , Frequency , Temperature Protection | |
| Packaging specification | L*W*H:460*300*250mm(5.5KG) | |
We support charging piles with different power according to customer requirements
1. For Europe market, we've got CE, ROHS, REACH for 7kw, 11kw, 22kw wallbox ev charger.
2. For North America, we're getting UL certification of 7kw, 10kw wallbox for whole charger.

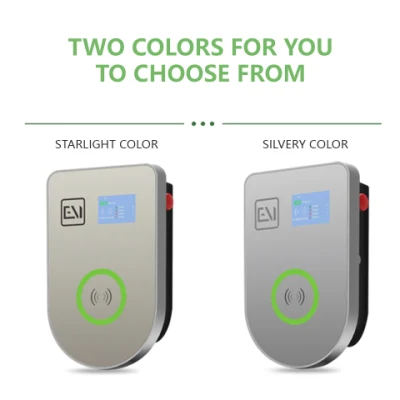

3. Customize designs, logos, colors available even for small quantity and small business.
4. 4.3 inch LED screen, Type B RCD leakage protection for ev chargers.
5. Manual available in different languages, English, Geman, Dutch, Italian, Spanish etc.
6. 1 year warranty, 2 years and 3 years warranty(optional).
7. Each EV charging station is with emergency stop button.
8. Each wallbox EV charger comes with its own MCB/OCCP.
9. Independently designed, different from other existing models in the market.
10. Easy installation, maintaining and stable functioning.
Can provide charging equipment that meets the following standards
The Charging piles are widely used in Residential, Wokeplace Business, Gas Station,
High-speed Service Station, Parking Lot,Household.
High-speed Service Station, Parking Lot,Household.
1:Why choose us?
A:We are professional EV charger manufacturer. We own mastered core R&D capabilities such as intelligent control, Internet of Things, rough data, artificial intelligence, and has been recognized by national high-tech enterprises and has more than 100 patented technologies.
2: How can we guarantee quality?
A: Always a pre-production sample before mass production; All major components are tested before assembly and each charger is fully tested before shipped.
3: How long to fully charge a car?
A: To know how long to charge a car, you need to know the OBC(on board charger) power of the car, the car battery capacity, the charger power. The hours to fully charge a car =battery kw.h/obc or charger power the lower one. For e.g,the battery is 40kw.h,obc is 7kw, charger is 22kw, the 40/7=5.7hours. If the obc is 22kw, then 40/22=1.8hours.
4:Can I order some samples? How long will ship to my address?
A:Yes, sample available, and usually 7-10 days to production and 7-10 days to express.
5.Can I custom our logo, package and cable length?
A: Yes dear, we support custom printing your Logo, package,plug and cable. We support GB/T, US, EU, JPN Standard.
6.Can I have a discount price and better service?
A: Of course , for first cooperation and our VIP customers, we all have different plan of discount. And please don't worry, we always provide best service of every customer friend. Please to contact us ! Welcome contact Now!
