- Overview
- Detailed Photos
- Product Description
Basic Info.
Model NO.
EQB-432L-TC2
Charge Method
Normal Charge
Current
32A 3phase
Power
22kw
Customization
Yes
IP
55
Internet Work
WiFi, Enthernet
APP
Tuya
Type
Slow EV Charging Station
Certification
CE, ISO, TUV, RoHS
Warranty
24 Months
Transport Package
Carton Box
Specification
297mm*210mm
Trademark
INOVUS
Origin
China
Production Capacity
5000 Sets Per Month
Packaging & Delivery
Package Size
58.00cm * 39.00cm * 42.00cm
Package Gross Weight
14.000kg
Product Description
Description

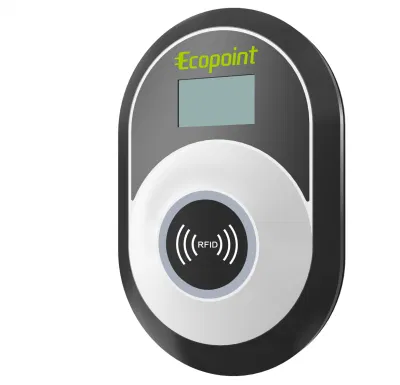

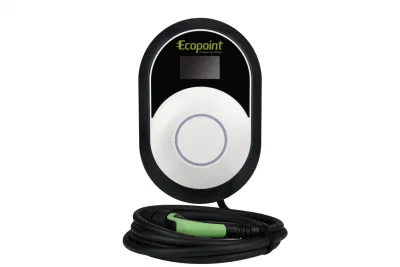

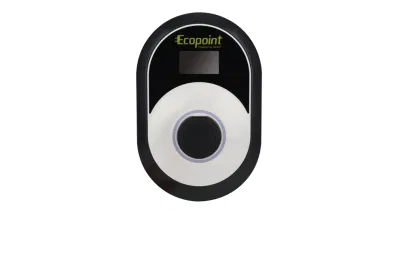

The Ecopoint range is intended to be applicable with domestic & commercial installations. Optimised for offering a great cost/quality ratio and for easy and intuitive use.
The Ecopoint charges the vehicle in mode 3 with a Type l or Type ll connector, and can also be equipped with most reliable protection of Type B RCCB, incorporated to control the charging process of the vehicle.
The Ecopoint can also incorporate a smart sensor for controlling the vehicle`s charging power, ensuring that the contracted power is not exceeded (preventing disconnection). reducing the charging costs.
Protection technology
DC fault & AC leakage protection: Integrated 30mA Type B RCCB or 6mA RCMU
Overload protection: Circuit breaker(MCB)(in upstream domestic installation,not included in scope of delivery)
| Technical data sheet | |
| Compliance | IEC 61851 |
| Certificate | CB by Bureau Veritas,TUV,CE,Rohs |
| Current | 16A 32A |
| Power | 3.7KW 7.2KW 11KW 22KW |
| Size | 297*210 mm, excluding charging cable and support bracket |
| Weight | G.W./N.W. 6.6kg/5.5kg |
| Rated Supply Voltage | 1-phase 230V±20% 3-phase 400V±20% |
| Rated Operating Frequency | 50HZ/60HZ |
| Charging Control Pattern | RFID access control (optional) |
| Internet Work | WIFI or Enthernet |
| Protection Level | IP55 |
| LCD Display | Optional |

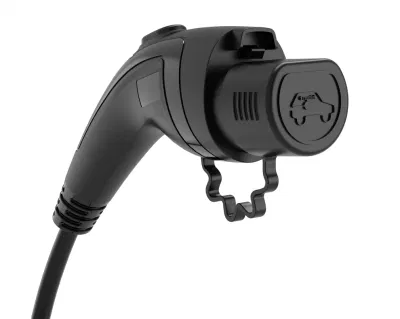

| Sockets/Plugs | Type 2 Type 1 |
| Cable Length | 5m |
